25 ton high-quality crane used by second-hand XCMG truck cranes in China
Product Description
The Sany STC250C5 is a 25 ton truck crane known for its high efficiency, precision, and strong adaptability. It is a versatile operator in the fields of construction and municipal engineering. Main features and advantages
Powerful and efficient lifting capacity: It adopts a five section large cross-section U-shaped main arm, with a full extension arm length of up to 41 meters, and coupled with 6.4-meter large-span support legs, ensuring strong lifting performance even during large-scale operations. By adopting a high flow dual variable plunger pump and an intelligent flow distribution system, efficient and energy-saving operations have been achieved, with smoother combined movements and excellent maneuverability.
Accurate micro motion performance: This is thanks to its valve compensation technology. In scenarios that require precise positioning, it can achieve millimeter level micro motion control, with a minimum stable speed of only 1.2 meters per minute for single rope hoisting and a minimum stable speed of 0.1 ° per second for rotation, greatly improving the safety and accuracy of lifting.
Excellent maneuverability and load-bearing capacity: Based on a high load-bearing chassis and a 2.55-meter-wide body design, it has stronger bending and torsional resistance, and good driving stability. Equipped with a high-powered engine and a 9-speed synchronous gearbox, it can reach a top speed of 85 kilometers per hour and a maximum climbing slope of 45%, making it easy to adapt to urban roads and general construction site conditions, and quickly achieve site transfer.
Applicable scenarios
STC250C5 is a highly versatile model, mainly suitable for:
Building construction: used for hoisting steel bars, formwork, prefabricated components, installing tower crane auxiliary equipment, etc.
Municipal public utilities: cooperating with underground pipeline construction, street lamp installation, and large-scale seedling transplantation in green maintenance.
Landscape greening: lifting large landscape stones, trees, etc.
Rail transit construction: In the case of limited construction sites, the transportation and precise lifting of materials such as steel bars and steel structures are carried out. For example, in the construction of the Ziyang Line in Sichuan, it completed complex steel structure lifting tasks between narrow bridge piers with excellent micro motion and stability.
Industrial and plant maintenance: Conduct equipment maintenance and installation operations within the factory.
Suggestions for use under special working conditions (such as mines and quarries)
Although STC250C5 is powerful, there are several things to be aware of when considering its use in extremely harsh environments such as mines and quarries:
Applicability assessment: Although its lifting capacity is sufficient to handle the lifting of most materials in mines, the mining roads are rough and the ground often has sharp gravel, which causes significant wear on tires and chassis. At the same time, heavy-duty climbing and long-term continuous operation also pose significant challenges to the heat dissipation of the power and hydraulic systems.
Safety and maintenance: When working in complex environments, it is necessary to strictly follow safety regulations. At the same time, due to the large amount of dust and heavy load, equipment needs to be inspected and maintained more frequently and strictly, such as cleaning the air filter in a timely manner, inspecting the welds of the chassis and legs, replacing damaged tires, etc., in order to extend the service life of the equipment.
Product parameters table
| product name |
Sany truck crane |
| country of origin |
China |
|
| Product model |
STC250C5 |
| Dimensions |
13×2.7×3.6(m) |
| Engine model |
WP7.300E51 |
| No. of cylinders |
The 8 cylinders |
|
| Basic arm |
11m |
|
| Boom length - fully extended |
38.5m |
|
| Boom length - basic arm+auxiliary arm |
18.5m |
|
| Rated power (kW/rpm) |
213kW/2200rpm |
|
| types of |
Industrial universal type |
|
| after-sale service |
support |
|
| OEM |
support |
|
| ODM |
support |
|

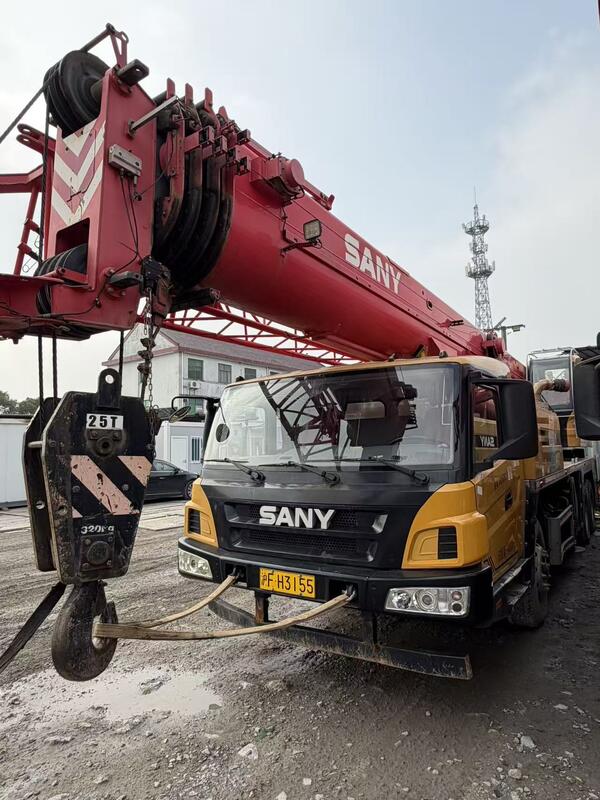

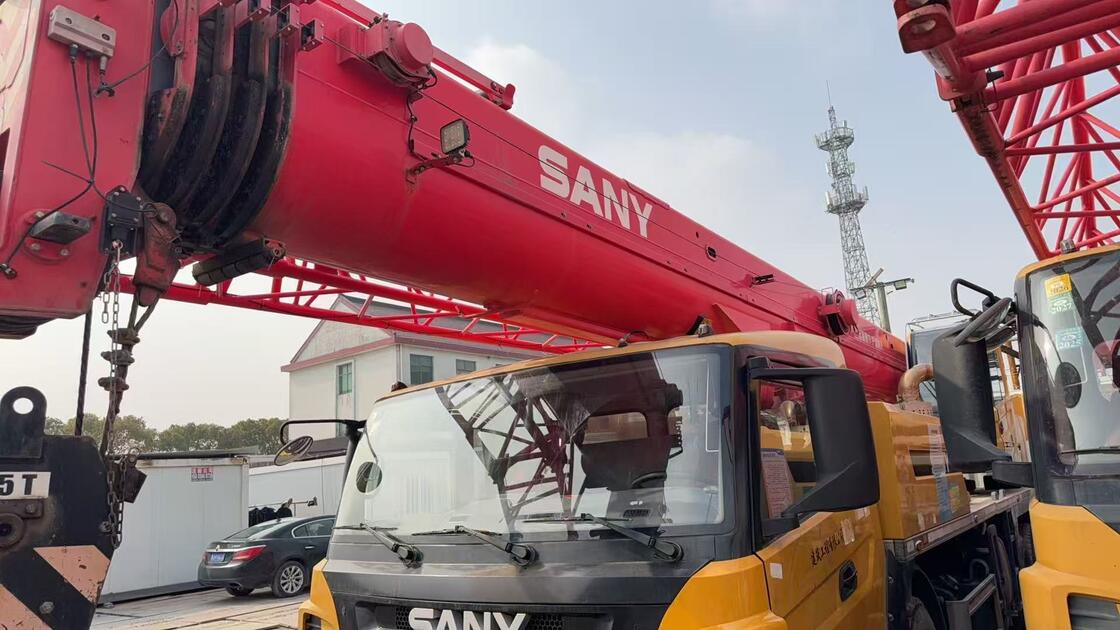

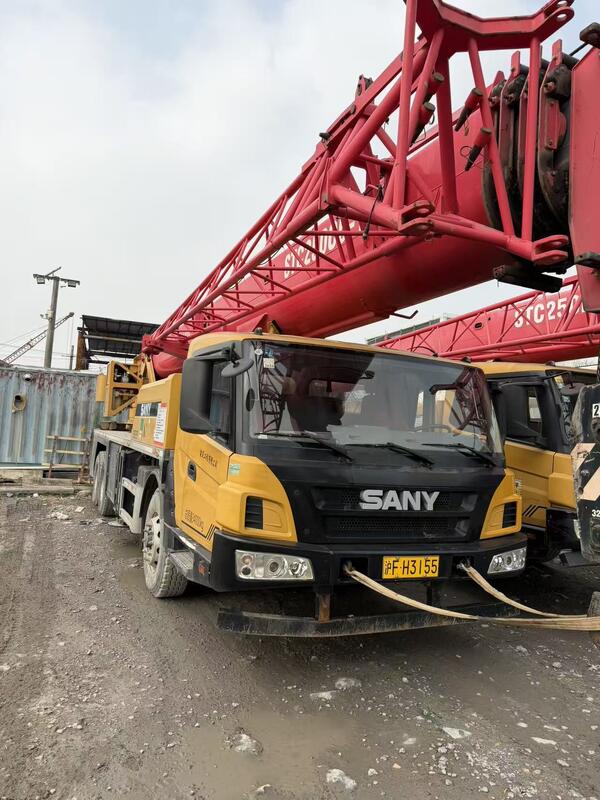

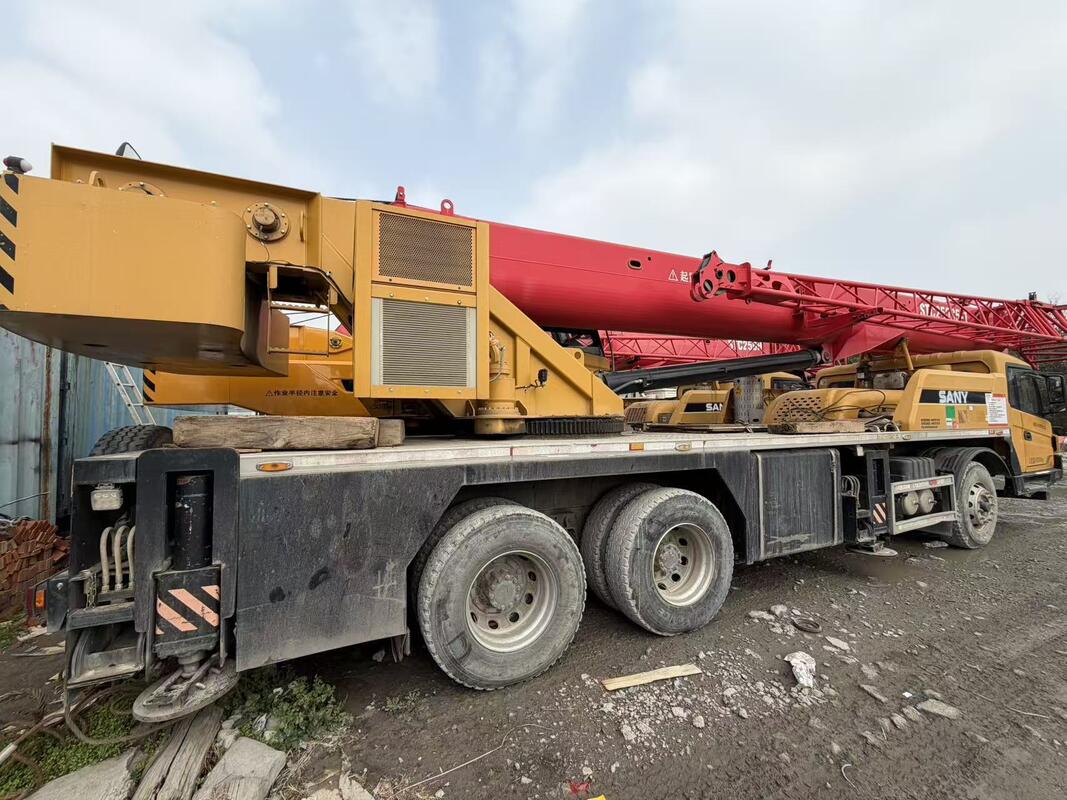

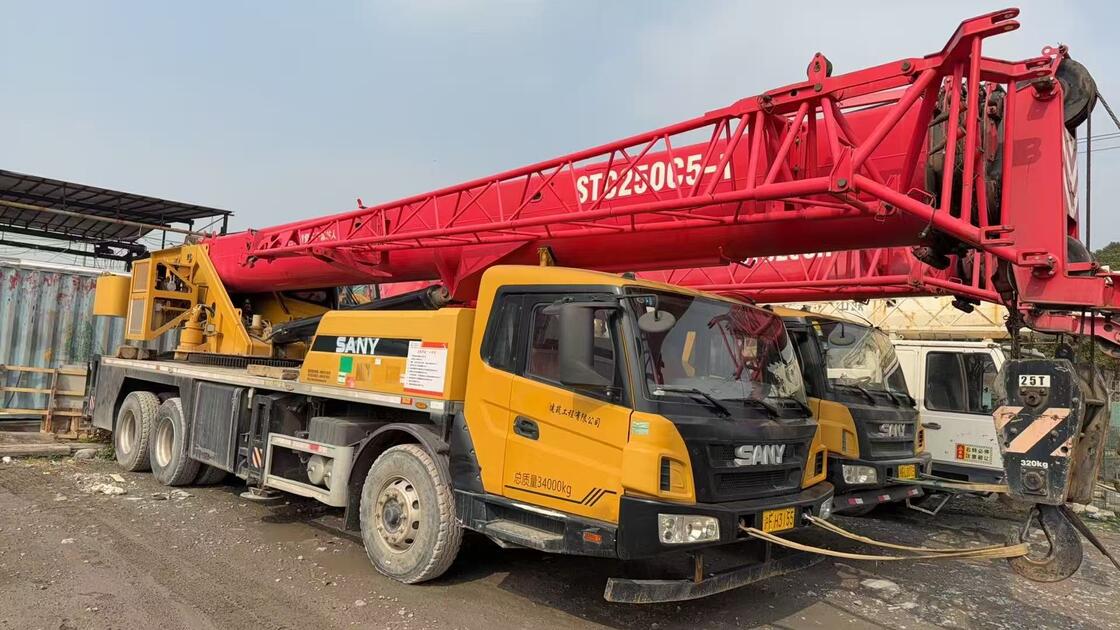

Product photo
Why did you choose us?
♥ quality assurance
————
Firstly, we are very professional in engineering machinery. We have professional engineers to inspect all parts and ensure that customers ensure that the machine is in good condition.
Secondly,We can obtain authorization certificates for the brands we sell, all machines can be inspected on your behalf. We provide pre-sales and after-sales services to inspect the performance of the machines on your behalf before sales.
Finally, we have professional technical personnel from the factory and our own trading company, providing OEM and ODM services
Our other products and models:
| Products |
Brand |
Model |
| Used Excavator |
CAT |
306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi |
EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 |
| Komatsu |
PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 |
| Kobelco |
SK60,SK75,SK120,SK200,SK260,SK350 |
| Doosan |
DH55,DH60,DH150,DH220,DH225,DH300 |
| DX55,DX60,DX150,DX220,DX225,DX300 |
| Hyundai |
130,150,215,225,305 |
| Volvo |
EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 |
| Kubota |
U15,U17,U30,U35,KX155,KX165 |
| SANY |
55,60,75,95,135,215,235 |
| Used Bulldozer |
CAT |
D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu |
D31EX,D65E,D85,D155,D275,D375,D65PX |
| Shangong |
SEM816,SEM818 |
| Shantui |
SD13,SD16,SD22,SD32 |
| Used Loader |
CAT |
938G,966F,966H,966G,950GC,980G |
| Komatsu |
WA320,WA380,WA470,WA500,WA600 |
| XCMG |
50GN |
| LIiugong |
LG856,856H,835,836,862 |
| Shangong |
SEM650,652 |
| Lingong |
LG936,956,958,968 |
| Used Backhoe Loader |
JCB |
3CX,4CX, |
| CASE |
508M,580L,580N |
| Lingong |
776,777 |
| Used Motor Grader |
CAT |
12G,4G,120G,140G,140K |
| Komatsu |
GD511A,GD655 |
| XCMG |
GR180,GR215 |
| LIiugong |
61,416,141,804,215 |
| Shangong |
919,921 |
| Lingong |
9180 |
| Used Road roller |
SANY |
STR140,STR160,SSR220A,SSR200A |
| XCMG |
CA25/30,XS143/163/183,XS203/223/263 |
| Liugong |
LG614,616,618,620,622,626 |
| Shantui |
SR16,SR18,SR20,SR22
|
FAQ:
1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB , CIF
3.How about the delivery time?
Answer: Usually, it takes 7 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. How do customers conduct visits and inspections in China?
Answer: We are ready for your trip to China. If you purchase a machine from our company, you can fully reimburse the airfare cost (economy class only). If you are not familiar with Shanghai, you can contact us in advance and welcome you to China.
