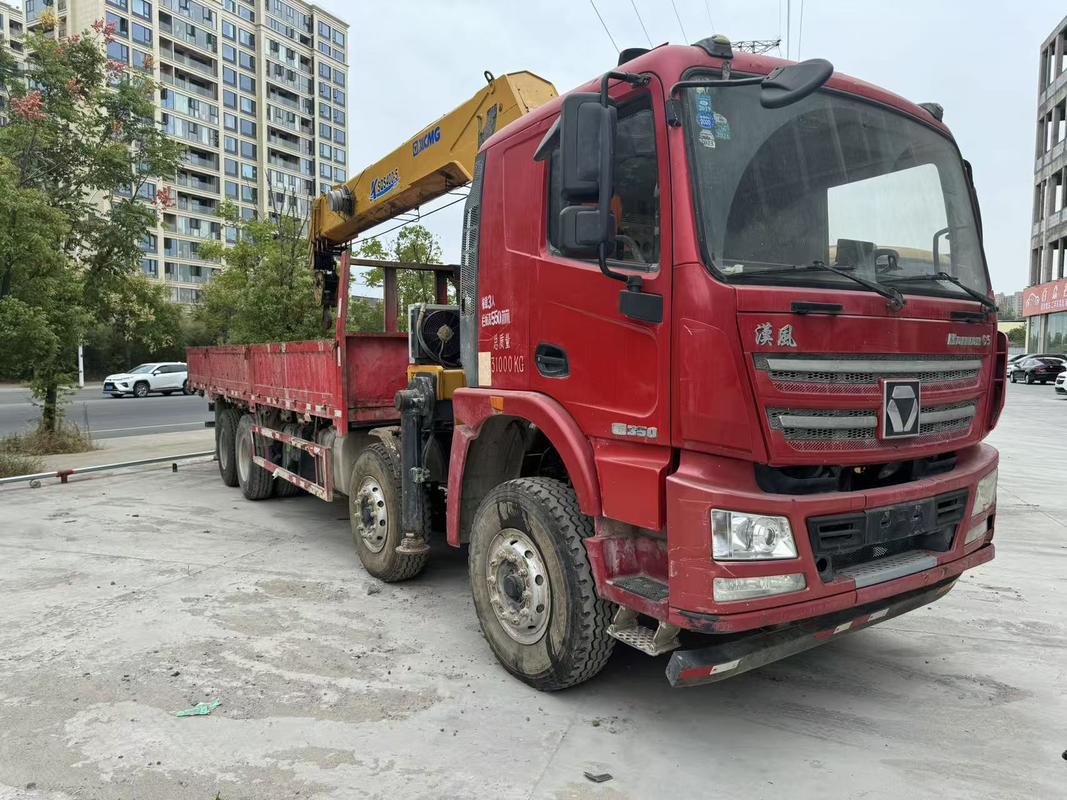

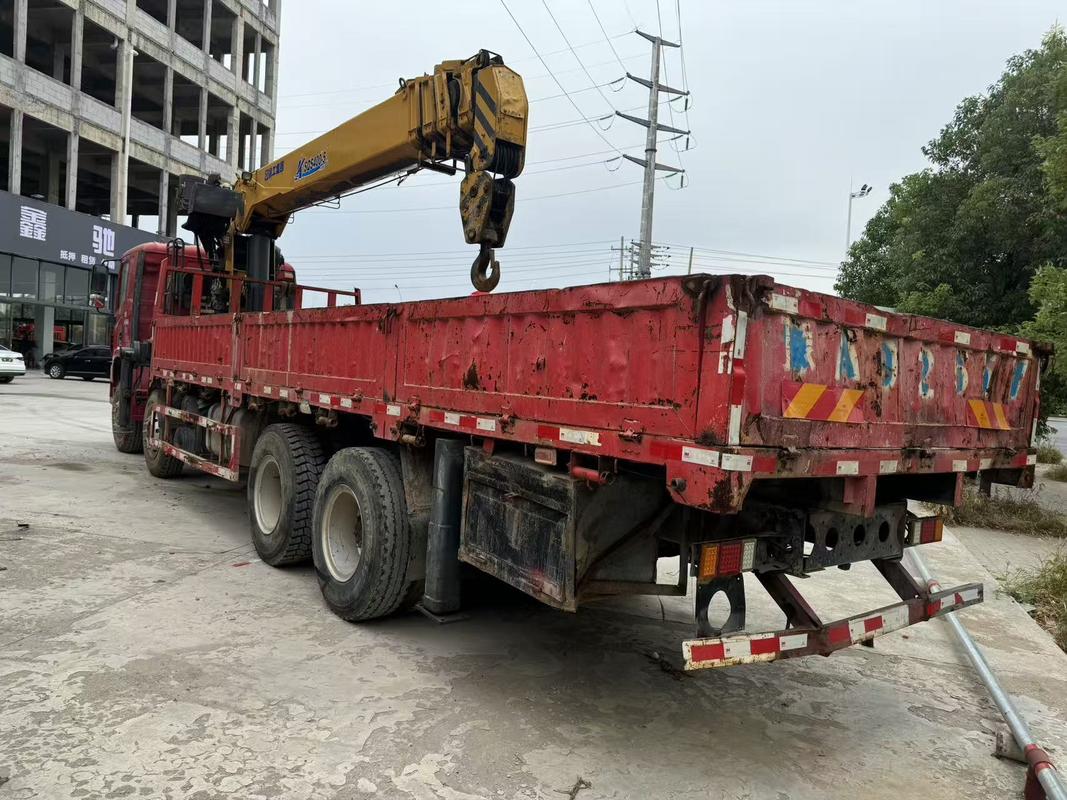

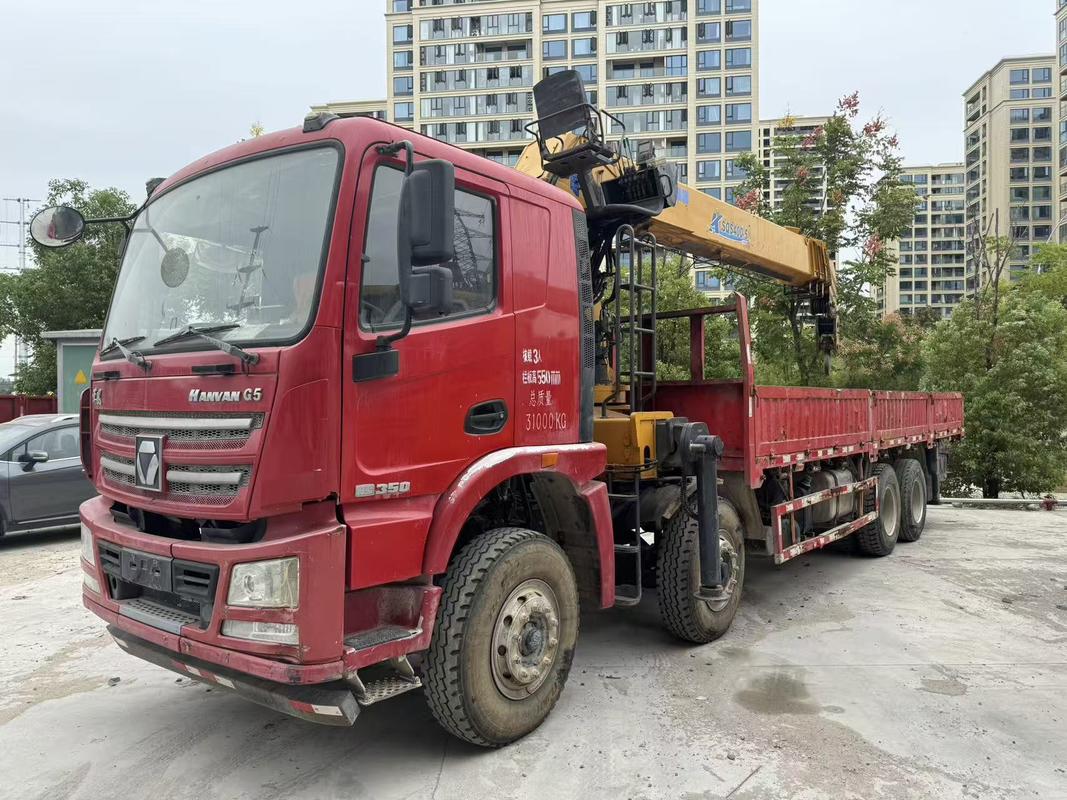

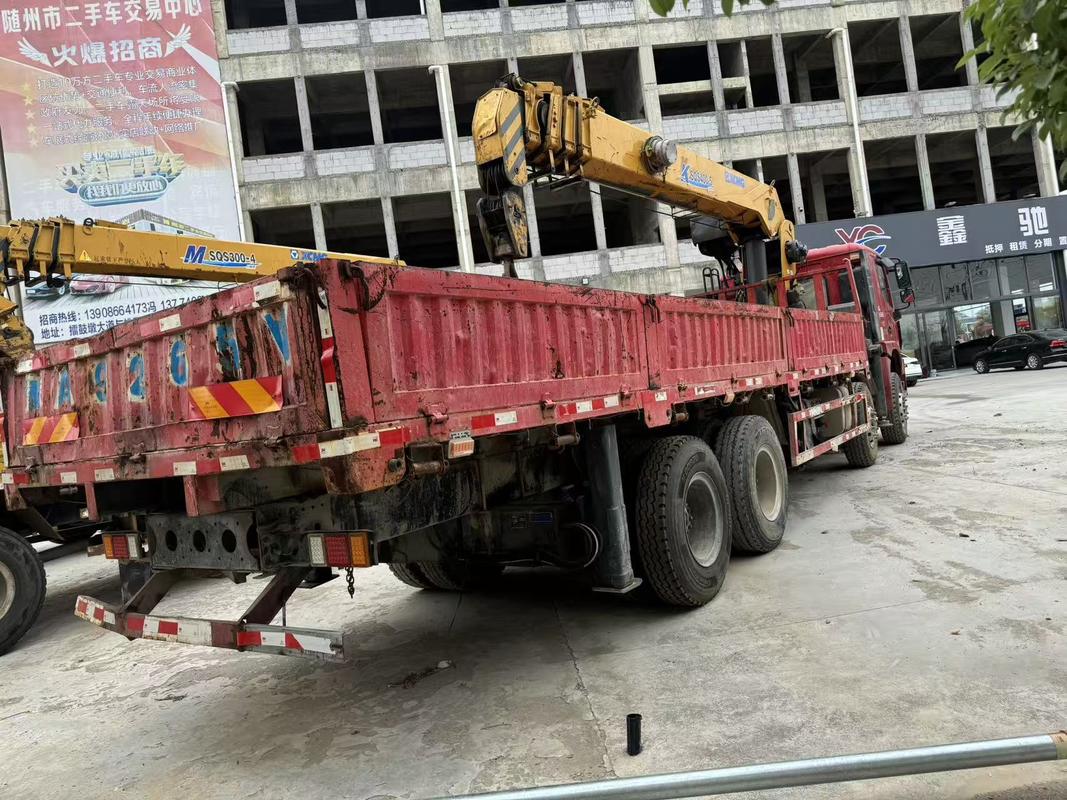

XCMG 16-ton truck-mounted crane, truck crane, excellent quality

                   XCMG 16-ton truck-mounted crane, truck crane, excellent quality

Product Description

Product positioning and core concepts
·Core concept: Truck mounted crane=truck chassis+hydraulic lifting crane. It can not only complete lifting operations, but also use its own cargo box for cargo transportation, achieving "one vehicle for two purposes".
·Product positioning: Medium to large tonnage truck mounted crane, suitable for occasions requiring frequent and moderate lifting operations and cargo transportation. It achieves an excellent balance between flexibility, functionality, and economy.

II. Main Components

1. Chassis part:
Typically, second-class heavy-duty truck chassis from brands such as Dongfeng, Jiefang, and Futian are chosen. Depending on the specific model and regulatory requirements, they may be 4-axle (front four and rear eight) or 3-axle vehicles, to ensure load-bearing capacity and driving stability.
Equipped with a diesel engine that meets the China VI emission standard, it provides powerful driving power.
2. Crane part:
This is a core functional component. XCMG's 16-ton truck-mounted crane is typically equipped with the "Lanqing" series straight-arm truck-mounted crane produced by XCMG itself.
· Model example: SQZ4000 or SQZ400 (the number here represents the crane torque, approximately 400 kN·m, corresponding to a lifting capacity of approximately 16 tons).

III. Core Parameters and Performance Characteristics (Taking SQZ4000 as an Example)

· Maximum lifting capacity: 16 tons
· Maximum working range: Typically reaching beyond 16 meters, indicating that a certain amount of weight can still be lifted even when the boom is extended laterally to a distance of 16 meters.
· Number of boom sections: Typically, it features 5 or 6 fully hydraulic telescopic boom sections, providing a flexible working radius.
· Installation form: The mid-mounted type (installed between the cab and the cargo box) is the most common form, balancing stability for both lifting and driving.
· Control method:
· Operation beside the cab: Control is achieved through the operation valve located on the crane base, with a good view.
· Remote control operation: This is one of the biggest highlights of modern truck-mounted cranes. Operators can carry a wireless remote control and freely choose the best observation position, greatly enhancing operational safety and accuracy.

IV. Highlighting Advantages

1. Multi-purpose vehicle, efficient and economical
One vehicle can simultaneously meet both lifting and transportation needs, eliminating the need to hire additional cranes and trucks, thereby significantly reducing equipment and labor costs.
2. Flexible and maneuverable, easy to operate
Compared to truck-mounted cranes that require separate consignment, truck-mounted cranes can travel at high speeds on highways like ordinary trucks, with rapid site transitions, making them particularly suitable for mobile operations between multiple scattered small construction sites.
3. High safety
· Equipped with comprehensive safety devices, such as overwind protection, over-lowering protection, torque limiter (to prevent overload), hydraulic system safety valve, etc.
· Remote control operation allows operators to stay away from the area beneath the load and dangerous zones, ensuring greater safety.
4. Strong performance and wide operation range
The lifting capacity of 16 tons is sufficient to handle the hoisting of most building materials (such as prefabricated panels, steel bars), machinery and equipment, trees, pipelines, etc.
The long working range allows it to cover a large operational area even within a limited space.

V. Typical application scenarios

The application scope of XCMG's 16-ton truck-mounted crane is extremely wide, covering almost all industries that require "lifting and moving immediately":

· Construction: Hoisting building materials, molds, and small equipment to designated locations on floors or construction sites.
· Logistics and transportation: loading and unloading large or heavy goods, such as machinery and equipment, containers, steel, etc.
· Municipal engineering: installation and maintenance of street lights, traffic signs, and landscape tree transplanting.
· Electricity and telecommunications: erecting utility poles and hoisting transformers.
· Stone and wood market: loading, unloading, and transferring stone slabs and wood.
· Emergency rescue: As an auxiliary vehicle, it can be used to remove obstacles, etc.

Technical Parameters

Features

Product Name: truck-mounted crane
Applications: highways, bridges, construction, mining
High quality service: after-sales warranty

Product Display

Customization

Support and Services:

At XYZ Equipment, we provide comprehensive technical support and service for all our Used Truck Cranes. Our experienced technicians and engineers are available to assist you with any issues you may have. We offer a range of services, including on-site inspections, repairs, and maintenance. In addition, we provide parts and accessories to ensure your Used Truck Cranes remain in optimal condition.

We understand that the purchase of Used Truck Cranes can be a big investment, so we make sure that our products are reliable and of the highest quality. We also offer warranties for all of our Used Truck Cranes, so you can rest assured that you are making a sound investment.

To learn more about our Used Truck Cranes technical support and service, please contact us today.

Packing and Shipping:

Used Truck Cranes are packaged and shipped in accordance with the following protocols:

• All cranes are inspected for damage prior to shipment.
• Cranes are secured to a pallet for transport.
• The pallet is then shrink-wrapped for added protection.
• The pallet is then placed in a weatherproof shipping container.
• The container is sealed and prepared for shipment.
• The shipment is tracked until it reaches its destination.

FAQ:

1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.

2. What are your delivery terms?
Answer: FOB , CIF

3.How about the delivery time?
Answer: Usually, it takes 7 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.

4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.

5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.

6. How do customers conduct visits and inspections in China?
Answer: We are ready for your trip to China. If you purchase a machine from our company, you can fully reimburse the airfare cost (economy class only). If you are not familiar with Shanghai, you can contact us in advance and welcome you to China.
