Japanese original imported second-hand Cat 320B discounted price
  • Japanese original imported second-hand Cat 320B discounted price
  • Japanese original imported second-hand Cat 320B discounted price
  • Japanese original imported second-hand Cat 320B discounted price

Japanese original imported second-hand Cat 320B discounted price

Brand Name cat
Model Number 320B
Product Details
Powerful Engine:
Robust Engine
Spacious Cab:
Ergonomic Controls
Advanced Technology:
Advanced Monitoring And Diagnostic Systems
Fuel Efficiency:
Strong Emphasis
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
1. Flat rack is better for bigger construction equipmennt and no need to dismantle. 2.Container is cheapest and fast. 3.Bulk cargo ship is better for bigger construction equipment. 4. Ro-Ro ship is faster and good for every kinds machine
Delivery Time
7-20 work days
Payment Terms
L/C, T/T
Supply Ability
3000 units per year
Product Description

                              Japanese original imported second-hand Cat 320B discounted price



Product introduction

  1. The Caterpillar 320B Extended Arm Excavator is a powerful tracked excavator. The following is a detailed introduction to it:

    Basic parameters:
    Working weight of the whole machine: 19400kg, indicating its strong load-bearing capacity.
    The bucket has a capacity of 1.2m ³ and is suitable for various excavation scenarios.
    Boom length: 8680mm, the longer boom length allows the excavator to have a larger operating range during operation.
    Stick length: 7900mm, reasonable stick length design ensures excavation efficiency and stability.
    Technical performance:
    Engine model: CAT3066T (or other models), which represents Caterpillar's advanced engine technology, ensuring efficient and stable operation of excavators.
    Hydraulic system: The main pump type is a 2x variable axial piston pump, and the maximum flow rate and working pressure parameters of the main pump have been carefully designed and tested to ensure the strong excavation force and stability of the excavator.
    Drive mode and brake: Adopting full static hydraulic transmission and walking motor, making the excavator more flexible and stable during operation.
    Application scenario:
    Infrastructure construction: The Carter 320B extended arm excavator has performed excellently in excavation operations on roads, bridges, tunnels, and other projects. Its powerful excavation force and efficient operation speed ensure the smooth progress of the project.
    Mining: In any environment, the Carter 320B excavator can maintain a stable operating state and improve the efficiency of ore mining.
    Hydraulic engineering: In projects such as river dredging and reservoir construction, the Caterpillar 320B excavator can quickly complete a large amount of earthwork excavation work, ensuring the smooth progress of hydraulic engineering.
    Other features:
    Environmental design: The Carter 320B excavator fully considers environmental factors in its design and manufacturing process, such as low noise, low vibration, and other characteristics, effectively reducing the impact on the surrounding environment.
    Convenient maintenance: As a globally renowned construction machinery manufacturer, Caterpillar provides comprehensive system support for maintenance and upkeep of its products, ensuring the continuous and stable operation of excavators.
    In summary, the Carter 320B extended arm excavator has broad application prospects in multiple fields due to its advanced technical performance, strong excavation force, and stable operating state.

Technical Parameters


Technical Parameter Specification
Overall Dimensions
Operating Weight (kg) 19,400 - 21,100
Bucket Capacity (m³) 0.92 - 1.0
Boom Length (mm) 5,680 - 5,700
Arm Length (mm) 2,900 (standard)
Origin Japan/Other Countries
Engine Model Caterpillar CAT 3066T
Rated Power (kW/rpm) 99.9/1800
Displacement (L) 6.4
Bore x Stroke (mm) 102 x 130
Hydraulic System
Main Pump Max Flow (l/min) 185
Operating Hydraulic Oil Pressure (Mpa) 34.3
Tracking Hydraulic Oil Pressure (Mpa) 34.3
Swing Hydraulic Oil Pressure (Mpa) 23
Pilot Oil Pressure (MPa) 4.12
Travel and Swing
Swing Speed (rpm) 10.7
Travel Speed (km/h) 3.4/5.5
Fuel Tank Capacity (L) 340
Hydraulic Oil Tank Capacity (L) 130
Engine Oil Change Quantity (L) 20.5
Coolant Capacity (L) 25
Total Transport Length (mm) 9,440 - 9,460
Total Transport Width (mm) 2,800
Total Transport Height (mm) 2,940 - 3,050
Cab Height (mm) 2,940 - 2,950
Track Ground Contact Length (mm) 3,265
Track Shoe Width (mm) 600
Track Overall Width (mm) 2,800
Track Gauge (mm) 2,200
Minimum Ground Clearance (mm) 450 - 475
Rear Swing Radius (mm) 2,750
Operating Range
Max Digging Radius at Ground Level (mm) 9,780 - 9,850
Max Digging Depth (mm) 6,640 - 6,710
Max Digging Height (mm) 9,470 - 9,840
Max Dumping Height (mm) 6,500 - 6,570
Max Vertical Digging Depth (mm) 6,040 - 6,180

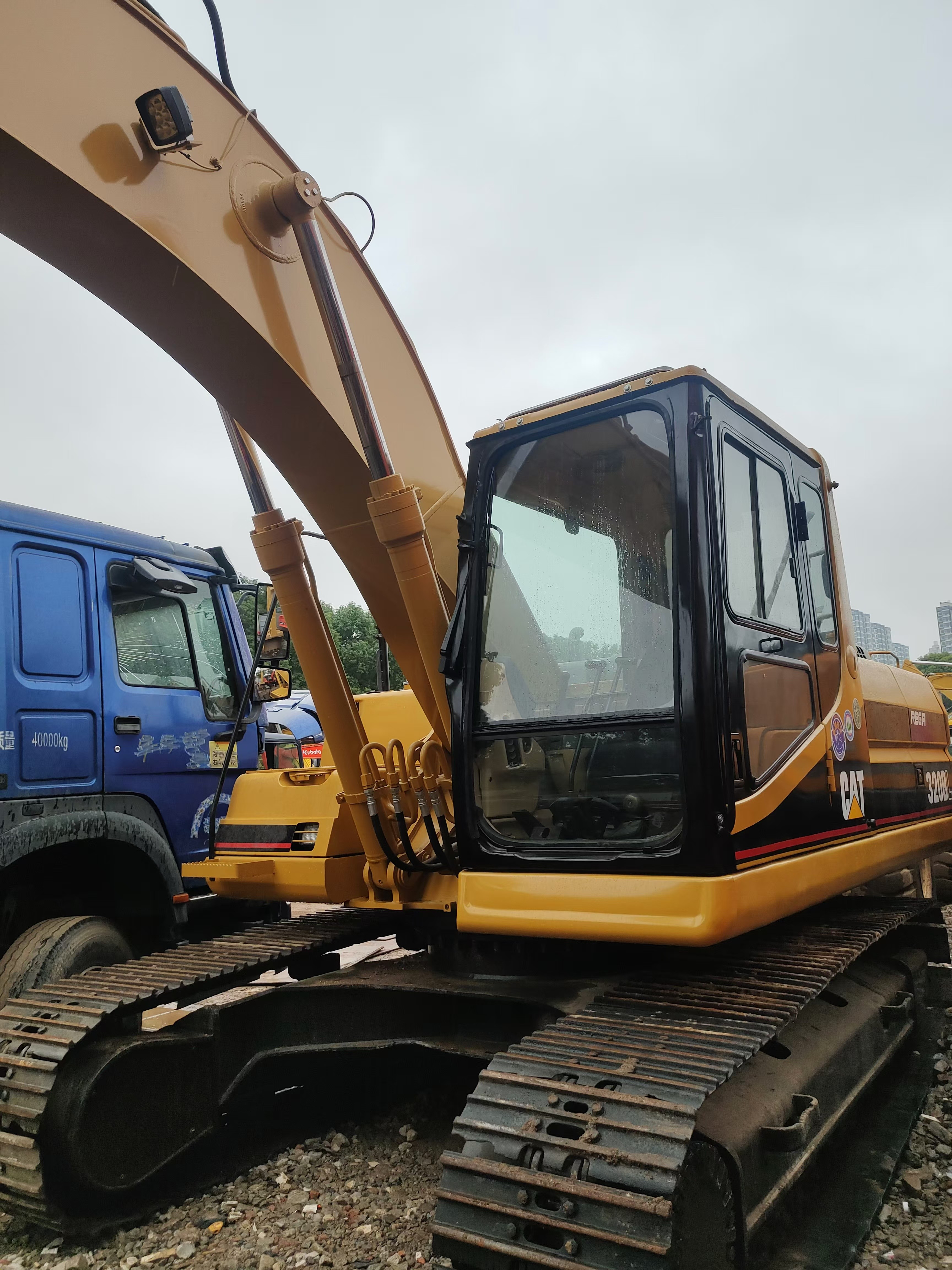

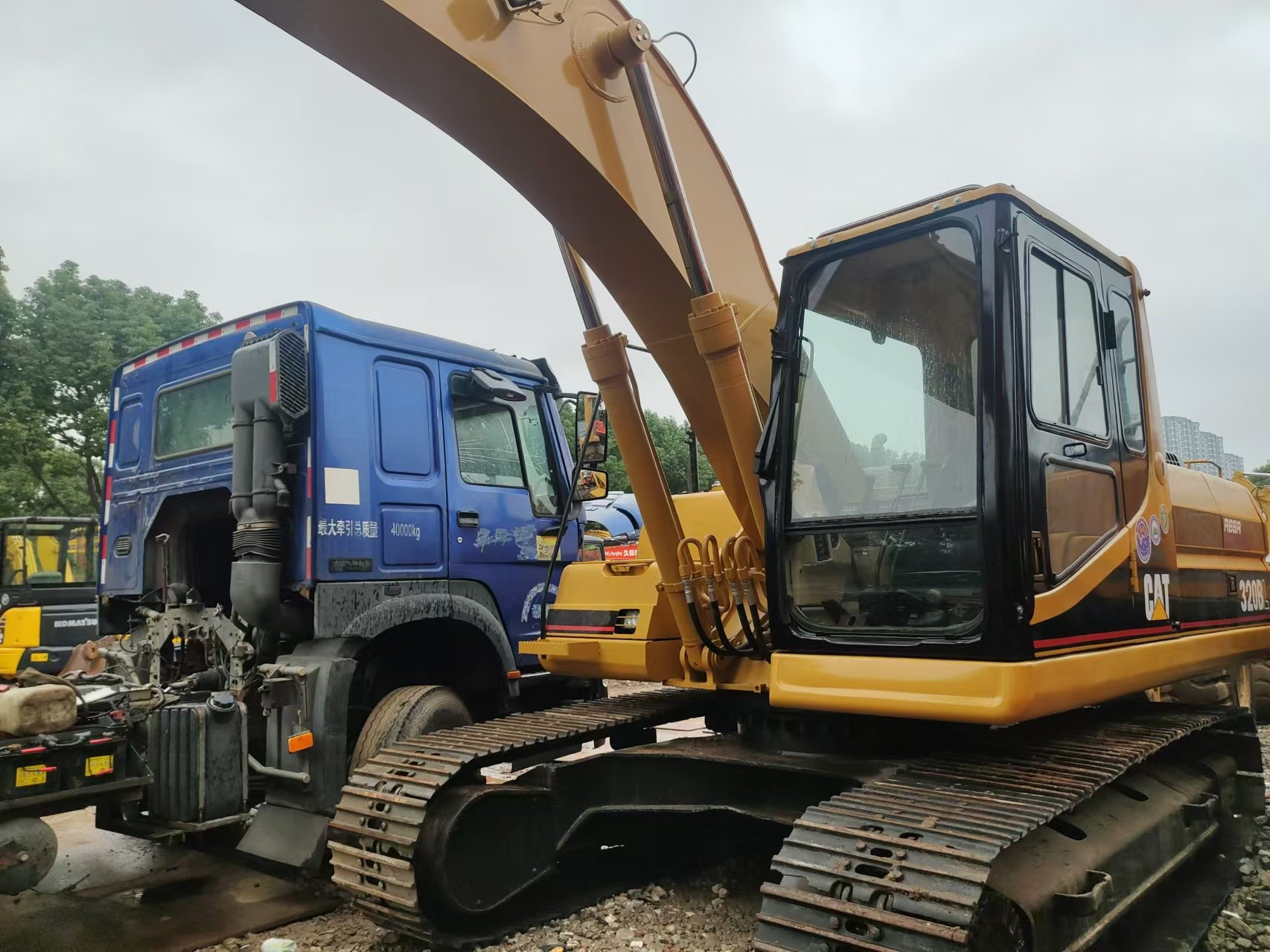

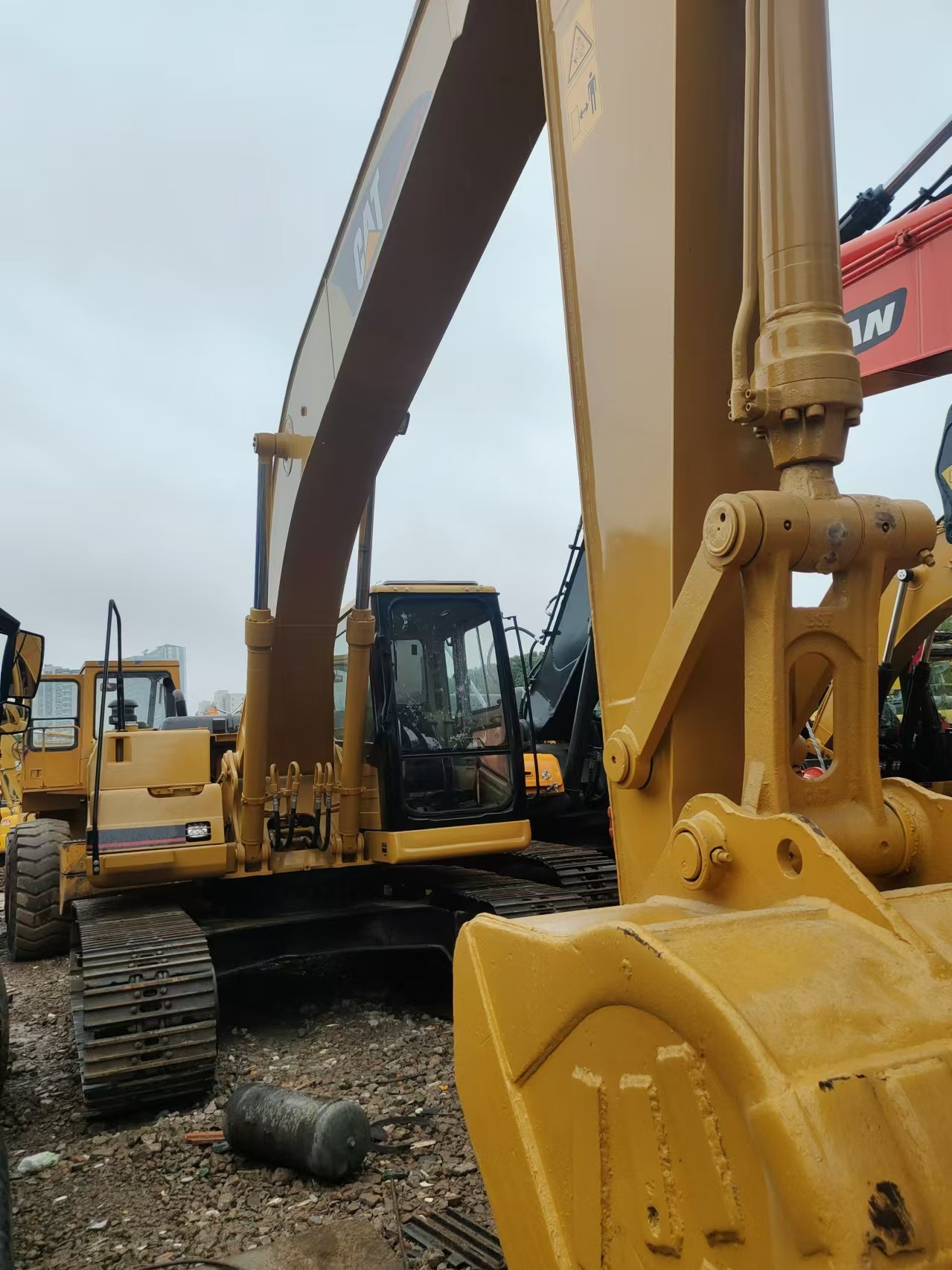

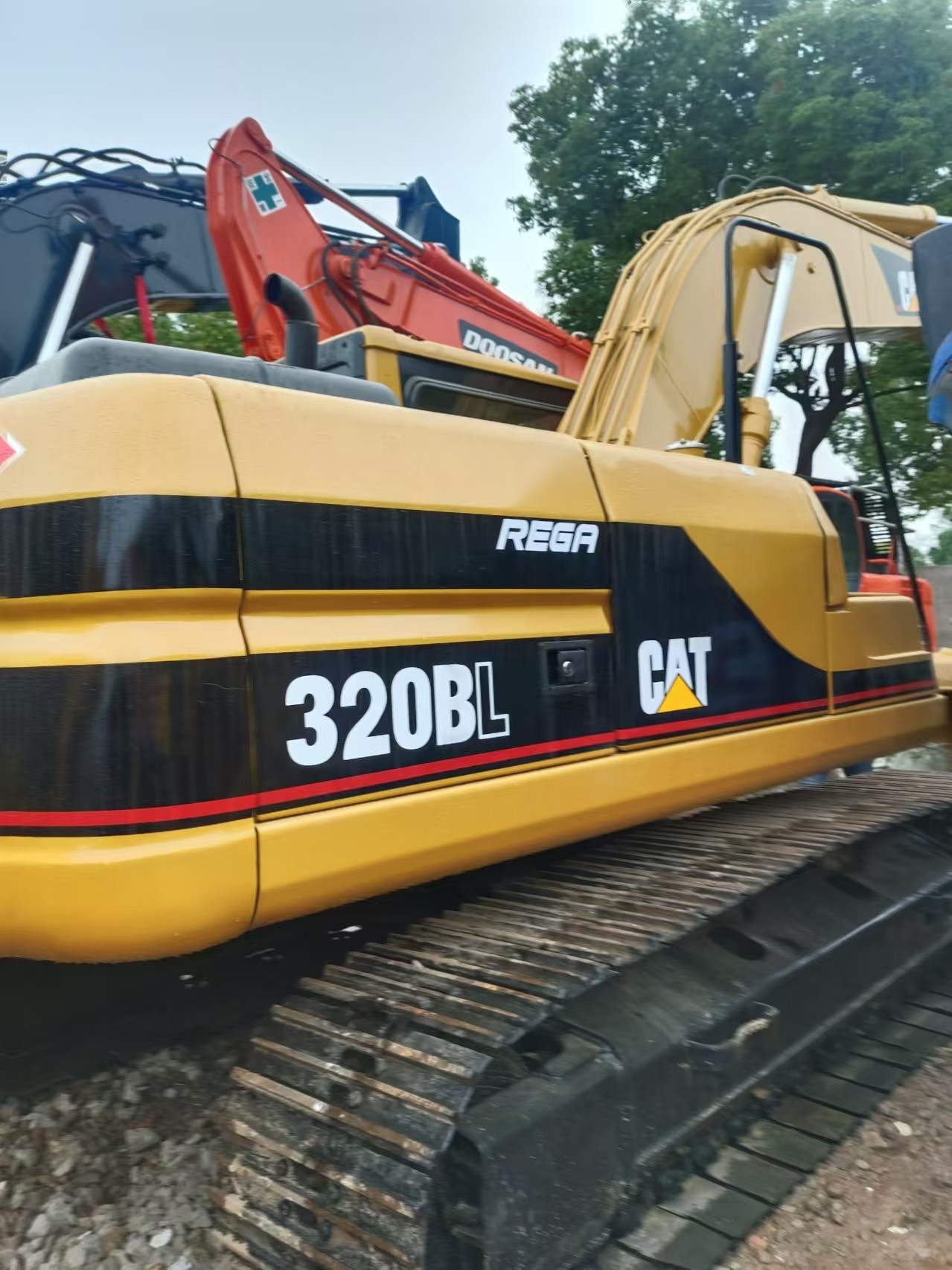

Detailed photos
