Used CAT 345C excavator large hydraulic tracked excavator construction machinery
  • Used CAT 345C excavator large hydraulic tracked excavator construction machinery
  • Used CAT 345C excavator large hydraulic tracked excavator construction machinery
  • Used CAT 345C excavator large hydraulic tracked excavator construction machinery

Used CAT 345C excavator large hydraulic tracked excavator construction machinery

Place of Origin Japan
Brand Name Caterpillar
Model Number 345C
Product Details
Brand:
Caterpillar
Operating Weight:
45 Ton
Walking Mode:
Crawler-type
Product Power:
Traditional Power
After-Sales Service Provided:
Video Technical Support
Bucket Form:
Backhoe
Usage Of Working Conditions:
General
High Light:

Used CAT 345C excavator

,

Construction Machinery Excavator

,

Large Hydraulic Tracked Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiation
Packaging Details
1. Flat rack is better for bigger construction equipmennt and no need to dismantle. 2.Container is cheapest and fast. 3.Bulk cargo ship is better for bigger construction equipment. 4. Ro-Ro ship is faster and good for every kinds machine
Delivery Time
5-15 work days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
3000 units per year
Product Description

Used CAT 345C excavator large hydraulic tracked excavator construction machinery

Model Introduction:

General Overview:

  • The Cat345C excavator is a hydraulic excavator with a robust design and high performance capabilities.
  • It is suitable for various applications such as mining, quarrying, road construction, and general earthmoving.

Technical Specifications:

  • Engine:
    • Engine Model: Cat® C13 ACERT™
    • Flywheel Net Power: 321 hp (ISO 9249, SAE J1349, EEC 80/1269)
    • Cylinder Bore: 5.1 in
    • Stroke: 6.2 in
    • Displacement: 736 in³
  • Weight and Dimensions:
    • Operating Weight: 99,150 lb (44,970 kg)
    • Maximum Ground Reach: 42.5 ft
    • Maximum Digging Depth: 29.3 ft
    • Maximum Bucket Capacity: 5 yd³ (3.8 m³)
  • Hydraulic System:
    • Main System Maximum Flow: 190 gal/min
    • Maximum Normal Operating Pressure: 5080 psi
    • Main Relief Pressure: 5080 psi
    • Boom Cylinder: 6.3 in diameter, 62 in stroke
    • Arm Cylinder: 7.5 in diameter, 70 in stroke (for long reach and folding arm)
  • Transmission and Mobility:
    • Maximum Travel Speed: 2.7 mph
    • Maximum Tractive Effort (with extended undercarriage): 75,920 lb
  • Operating Performance:
    • Bucket Digging Force: Not Specified
    • Arm Digging Force: Not Specified
    • Swing Speed: 8.6 RPM
    • Swing Torque: 109,560 lb-ft
  • Maintenance and Capacity:
    • Fuel Tank Capacity: 186 gal (705 L)
    • Hydraulic Oil Tank Capacity: 150 gal (568 L)
    • Engine Oil Capacity: 11 gal

Design and Durability:

  • The Cat345C excavator features a sturdy design with a heavy-duty chassis and undercarriage, providing stability and durability in demanding applications.
  • It has a spacious and ergonomic operator's compartment with intuitive controls and excellent visibility.

General Overview:

  • The Cat345C excavator is a hydraulic excavator with a robust design and high performance capabilities.
  • It is suitable for various applications such as mining, quarrying, road construction, and general earthmoving.

Technical Specifications:

  • Engine:
    • Engine Model: Cat® C13 ACERT™
    • Flywheel Net Power: 321 hp (ISO 9249, SAE J1349, EEC 80/1269)
    • Cylinder Bore: 5.1 in
    • Stroke: 6.2 in
    • Displacement: 736 in³
  • Weight and Dimensions:
    • Operating Weight: 99,150 lb (44,970 kg)
    • Maximum Ground Reach: 42.5 ft
    • Maximum Digging Depth: 29.3 ft
    • Maximum Bucket Capacity: 5 yd³ (3.8 m³)
  • Hydraulic System:
    • Main System Maximum Flow: 190 gal/min
    • Maximum Normal Operating Pressure: 5080 psi
    • Main Relief Pressure: 5080 psi
    • Boom Cylinder: 6.3 in diameter, 62 in stroke
    • Arm Cylinder: 7.5 in diameter, 70 in stroke (for long reach and folding arm)
  • Transmission and Mobility:
    • Maximum Travel Speed: 2.7 mph
    • Maximum Tractive Effort (with extended undercarriage): 75,920 lb
  • Operating Performance:
    • Bucket Digging Force: Not Specified
    • Arm Digging Force: Not Specified
    • Swing Speed: 8.6 RPM
    • Swing Torque: 109,560 lb-ft
  • Maintenance and Capacity:
    • Fuel Tank Capacity: 186 gal (705 L)
    • Hydraulic Oil Tank Capacity: 150 gal (568 L)
    • Engine Oil Capacity: 11 gal

Design and Durability:

  • The Cat345C excavator features a sturdy design with a heavy-duty chassis and undercarriage, providing stability and durability in demanding applications.
  • It has a spacious and ergonomic operator's compartment with intuitive controls and excellent visibility.

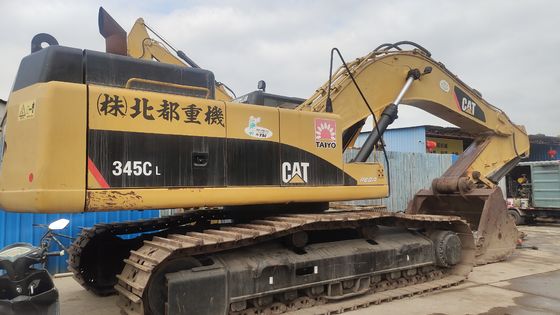

Product Photos



Used CAT 345C excavator large hydraulic tracked excavator construction machinery 0Used CAT 345C excavator large hydraulic tracked excavator construction machinery 1Used CAT 345C excavator large hydraulic tracked excavator construction machinery 2



Technical Parameters:

Parameter Value
Model Caterpillar 345C
long × wide × Height 11600×3350×3240(mm)
Bucket capacity 3m³
Rated power  259/2400(kW)
Maximum excavation height 10540(mm)
Maximum digging radius 11290(mm)
Maximum Digging Depth 7200(mm)
No. of cylinders 6
Engine model CAT C13ACERT
Oil type Diesel Oil
Cooling method water-cooling
Walking mode crawler-type
Basket Backhoe
After-sale service Available


Support and Services:

Excavator Operation Guide Technical Support and Services
Instructions for safe and efficient use
Free inspection and regular maintenance before leaving the factory
Spare parts supply after becoming our customer
