8 Ton used cat excavator 307 second hand construction machinery
  • 8 Ton used cat excavator 307 second hand construction machinery
  • 8 Ton used cat excavator 307 second hand construction machinery
  • 8 Ton used cat excavator 307 second hand construction machinery
  • 8 Ton used cat excavator 307 second hand construction machinery

8 Ton used cat excavator 307 second hand construction machinery

Place of Origin Japan
Brand Name Caterpillar
Model Number CAT307
Product Details
Brand:
Caterpillar
Operating Weight:
8 Ton
Net Power:
41.5 KW
Maximum Digging Depth:
4 M
Maximum Dumping Height:
5 M
Color:
Yellow
Engine:
Mitsubishi 4M40 TL
Product Power:
Traditional Power
After-Sales Service Provided:
Video Technical Support
High Light:

307 Used Cat Excavator

,

8 Ton Used Cat Excavator

,

Second Hand Construction Machinery

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiation
Packaging Details
1. Flat rack is better for bigger construction equipmennt and no need to dismantle. 2.Container is cheapest and fast. 3.Bulk cargo ship is better for bigger construction equipment. 4. Ro-Ro ship is faster and good for every kinds machine
Supply Ability
3000 units per year
Product Description

8 Ton used cat excavator 307 second hand construction machinery



Model Introduction:

General Information

  • Model: Cat Excavator 307 (also known as CAT® 307)
  • Type: Mini Hydraulic Tracked Excavator

Performance Specifications

  • Engine:
    • Engine Model: Cat® C2.4T
    • Rated Power: 36.5 kW / 2400 rpm
    • Displacement: 2.43 L
    • Bore and Stroke: 87 mm x 102 mm
    • Emission Standard: Tier IV (National IV)
  • Hydraulic System:
    • Main Pump Type: Variable Displacement Piston Pump
    • Maximum Main Pump Flow: 147 l/min
    • Operating Pressure: 28.5 MPa (Working Oil Circuit)
    • Travel and Swing Circuit Pressure: 28.5 MPa and 24 MPa respectively
  • Operating Weights and Dimensions:
    • Operating Weight: 7023-7435 kg
    • Bucket Capacity: 0.33 m³ (UD)
    • Transport Length: 6055 mm
    • Transport Width: 2300 mm
    • Transport Height: 2630 mm
    • Track Length on Ground: 2120 mm
    • Track Width: 450 mm
    • Ground Clearance: 360 mm
  • Performance Parameters:
    • Swing Speed: 10.8 rpm
    • Swing Torque: 16.3 Nm
    • Travel Speed: 3.2-5.1 km/h
    • Bucket Digging Force: 53.2 kN
    • Arm Digging Force: 36.3 kN
    • Maximum Tractive Force: 56.9 kN

Features

  • Comfortable Cab: The spacious cab provides a comfortable working environment.
  • Intuitive Controls: The seat-mounted controls enhance accuracy and efficiency.
  • Standard Counterweight Design: The counterweight is positioned further back on the machine, providing a stable platform for lifting and digging operations.
  • Fuel Efficiency: The excavator is designed to minimize fuel consumption, reducing operating costs.

Technical Parameters:

Parameter Value
Model Caterpillar 307
Product Power Traditional Power
Bucket capacity 0.3m³
Bucket form Backhoe
Maximum Dumping Height 5 m
displacement 2.83 L
working form Direct injection, turbocharged
Color Yellow
Engine Mitsubishi 4M40 TL
Oil type Diesel Oil
After-sale service Available
Cooling method water-cooling
Spacious cab Yes
Low noise Yes

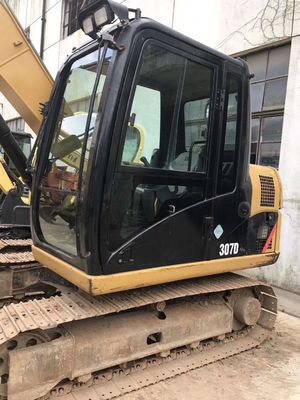

Product Photos:

8 Ton used cat excavator 307 second hand construction machinery 08 Ton used cat excavator 307 second hand construction machinery 18 Ton used cat excavator 307 second hand construction machinery 28 Ton used cat excavator 307 second hand construction machinery 38 Ton used cat excavator 307 second hand construction machinery 4

Support and Services:

Excavator Operation Guide Technical Support and Services
Instructions for safe and efficient use
Free inspection and regular maintenance before leaving the factory
Spare parts supply after becoming our customer


Our main products:


Products Brand Model
Used Excavator CAT 306,307,312D,315D,320C,320D,325,330D,336D,349D
Hitachi EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450
ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450
Komatsu PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450
Kobelco SK60,SK75,SK120,SK200,SK260,SK350
Doosan DH55,DH60,DH150,DH220,DH225,DH300
DX55,DX60,DX150,DX220,DX225,DX300
Hyundai 130,150,215,225,305
Volvo EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480
Kubota U15,U17,U30,U35,KX155,KX165
SANY 55,60,75,95,135,215,235
Used Bulldozer CAT D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R
Komatsu D31EX,D65E,D85,D155,D275,D375,D65PX
Shangong SEM816,SEM818
Shantui SD13,SD16,SD22,SD32
Used Loader CAT 938G,966F,966H,966G,950GC,980G
Komatsu WA320,WA380,WA470,WA500,WA600
XCMG 50GN
LIiugong LG856,856H,835,836,862
Shangong SEM650,652
Lingong LG936,956,958,968
Used Backhoe Loader JCB 3CX,4CX,
CASE 508M,580L,580N
Lingong 776,777
Used Motor Grader CAT 12G,4G,120G,140G,140K
Komatsu GD511A,GD655
XCMG GR180,GR215
LIiugong 61,416,141,804,215
Shangong 919,921
Lingong 9180
Used Road roller SANY STR140,STR160,SSR220A,SSR200A
XCMG CA25/30,XS143/163/183,XS203/223/263
Liugong LG614,616,618,620,622,626
Shantui SR16,SR18,SR20,SR22

Packing and Shipping:

Used excavators are transported using appropriate packaging materials to ensure the safety and integrity of the product during transportation. Packaging materials include corrugated boxes, shrink packaging, bubble packaging and foam. Depending on the size and weight of the product, the excavator is also secured to wooden pallets or slides using belts, shrink wrap, and/or stretch wrap.



FAQ:

1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB / CIF
3.How about the delivery time?
Answer: Usually, it takes 5 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
