Used Japanese Imported CAT Excavator 308 second hand construction machinery

Minimum Order Quantity : 1 unit Price : Negotiation
Packaging Details : 1. Flat rack is better for bigger construction equipmennt and no need to dismantle. 2.Container is cheapest and fast. 3.Bulk cargo ship is better for bigger construction equipment. 4. Ro-Ro ship is faster and good for every kinds machine Payment Terms : Western Union, MoneyGram, L/C, T/T
Supply Ability : 3000 units per year
Place of Origin: Japan Brand Name: Caterpillar
Model Number: CAT308

Detail Information

Brand: Caterpillar Operating Weight: 8 Ton
Excavation Method: Backhoe Product Power: Traditional Power
After-Sales Service Provided: Video Technical Support Usage Of Working Conditions: General
Manufacturer: Joint Venture/import
High Light:

second hand construction machinery CAT Excavator

,

308 CAT Excavator

,

Used Japanese Imported CAT Excavator

Product Description

Used Japanese Imported CAT Excavator 308 High used construction machinery

Model Introduction:

General Specifications:

  • Model Name: Cat 308 (may include variations such as 308DCR, 308E, 308E2, etc.)
  • Machine Type: Medium-sized excavator
  • Operating Weight: Depending on the model, the operating weight ranges from approximately 7,160 kg (308E) to 7,850 kg (308DCR).
  • Track Type: Crawler
  • Bucket Type: Backhoe
  • Application: General purpose

Engine System:

  • Engine Model: Varies depending on the model, examples include Mitsubishi MITSUBISHI 4M40 TL (308DCR) and Cat® C3.3 DI Turbo (308E).
  • Rated Power: Ranges from 43/41.5 kw/rpm (308DCR) to 49.7 kW (308E).
  • Displacement: Depends on the model, with options like 2.8 L (308DCR) or 3.3 L (308E).
  • Cooling System: Water-cooled

Performance Parameters:

  • Operating Weight (kg): As mentioned above, it ranges from 7,160 kg (308E) to 7,850 kg (308DCR).
  • Bucket Capacity (m³): Also varies, with options such as 0.23 m³ (308DCR) or 0.38 m³ (308E).
  • Travel Speed (km/h): For example, 5 km/h (308DCR) or 5.1/3.2 km/h (308E, high/low).
  • Swing Speed (rpm): Such as 10.8 rpm (308E).
  • Gradeability (%): 30% (308E)

Dimensions:

  • Overall Length (mm): Ranges from approximately 5,810 mm (308DCR) to 6,080 mm (308E).
  • Overall Width (mm): 2,320 mm (both 308DCR and 308E).
  • Overall Height (mm): Ranges from 2,590 mm (308DCR) to 2,700 mm (308E).
  • Track Ground Length, Track Width, and other dimensions also vary by model.

Working Range:

  • Maximum Digging Radius (mm): For instance, 6,420 mm (308E).
  • Maximum Digging Depth (mm): Such as 4,210 mm (308E).
  • Maximum Digging Height (mm): For example, 7,330 mm (308E).
  • Maximum Dumping Height (mm): Like 5,300 mm (308E).

Fuel and Oil Capacities:

  • Fuel Tank Capacity (L): Varies from 125 L (308DCR) to 135 L (308E).
  • Hydraulic Oil Tank Capacity, Engine Oil Change Quantity, and other capacities also vary depending on the model.

The Cat 308 series of excavators offers stable performance, efficient digging capabilities, and a moderate size, making it suitable for various applications in construction sites, roadworks, and mining operations.

Technical Parameters:

Parameter Value
Model Caterpillar 308
Tonnage  8(ton)
Bucket capacity

0.23m³

rated power 70/2000(Kw/rpm)
overall length 8170(mm)
overall width 2590(mm)
Overall height 2970(mm)
No. of cylinders 4
Engine model Cat C4.4 ACERT
Oil type Diesel Oil
After-sale service Available
Cooling method water-cooling
working form Meet EU Stage IIIB emission standards
Low noise

Yes

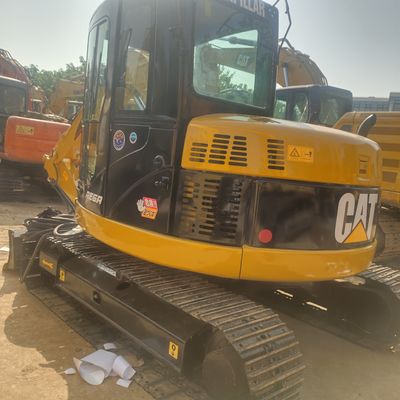

Product Photos:

Used Japanese Imported CAT Excavator 308 second hand construction machinery 0

Used Japanese Imported CAT Excavator 308 second hand construction machinery 1Used Japanese Imported CAT Excavator 308 second hand construction machinery 2Used Japanese Imported CAT Excavator 308 second hand construction machinery 3



Support and Services:

Excavator Operation Guide Technical Support and Services
Instructions for safe and efficient use
Free inspection and regular maintenance before leaving the factory
Spare parts supply after becoming our customer


Our main products:


Products Brand Model
Used Excavator CAT 306,307,312D,315D,320C,320D,325,330D,336D,349D
Hitachi EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450
ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450
Komatsu PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450
Kobelco SK60,SK75,SK120,SK200,SK260,SK350
Doosan DH55,DH60,DH150,DH220,DH225,DH300
DX55,DX60,DX150,DX220,DX225,DX300
Hyundai 130,150,215,225,305
Volvo EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480
Kubota U15,U17,U30,U35,KX155,KX165
SANY 55,60,75,95,135,215,235
Used Bulldozer CAT D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R
Komatsu D31EX,D65E,D85,D155,D275,D375,D65PX
Shangong SEM816,SEM818
Shantui SD13,SD16,SD22,SD32
Used Loader CAT 938G,966F,966H,966G,950GC,980G
Komatsu WA320,WA380,WA470,WA500,WA600
XCMG 50GN
LIiugong LG856,856H,835,836,862
Shangong SEM650,652
Lingong LG936,956,958,968
Used Backhoe Loader JCB 3CX,4CX,
CASE 508M,580L,580N
Lingong 776,777
Used Motor Grader CAT 12G,4G,120G,140G,140K
Komatsu GD511A,GD655
XCMG GR180,GR215
LIiugong 61,416,141,804,215
Shangong 919,921
Lingong 9180
Used Road roller SANY STR140,STR160,SSR220A,SSR200A
XCMG CA25/30,XS143/163/183,XS203/223/263
Liugong LG614,616,618,620,622,626
Shantui SR16,SR18,SR20,SR22

Packing and Shipping:

Used excavators are transported using appropriate packaging materials to ensure the safety and integrity of the product during transportation. Packaging materials include corrugated boxes, shrink packaging, bubble packaging and foam. Depending on the size and weight of the product, the excavator is also secured to wooden pallets or slides using belts, shrink wrap, and/or stretch wrap.



FAQ:

What is your payment method?
1. T/T30% deposit as deposit. Before you pay the balance, we will show you photos of the product and packaging.
We will send you the product and packaging
2. What are your delivery terms?
A: FOB.CIF
How about the delivery time?
A: Usually, we complete the delivery to the customer within 5 days after receiving the advance payment. The specific delivery time depends on the customer's order quantity.
How to ensure the condition and lifespan of the machine?
A: We choose machines with excellent condition and short usage time. We have factory engineers who conduct professional inspections and maintenance of machines before shipment.
5. How to obtain after-sales service?
A: Our factory has cheap original spare parts to provide to our customers. Please let us know by phone and email, and we will send the machine parts.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
