Official inventory Zhonglian Heavy Industry pump truck, Mercedes Benz chassis

Product Description

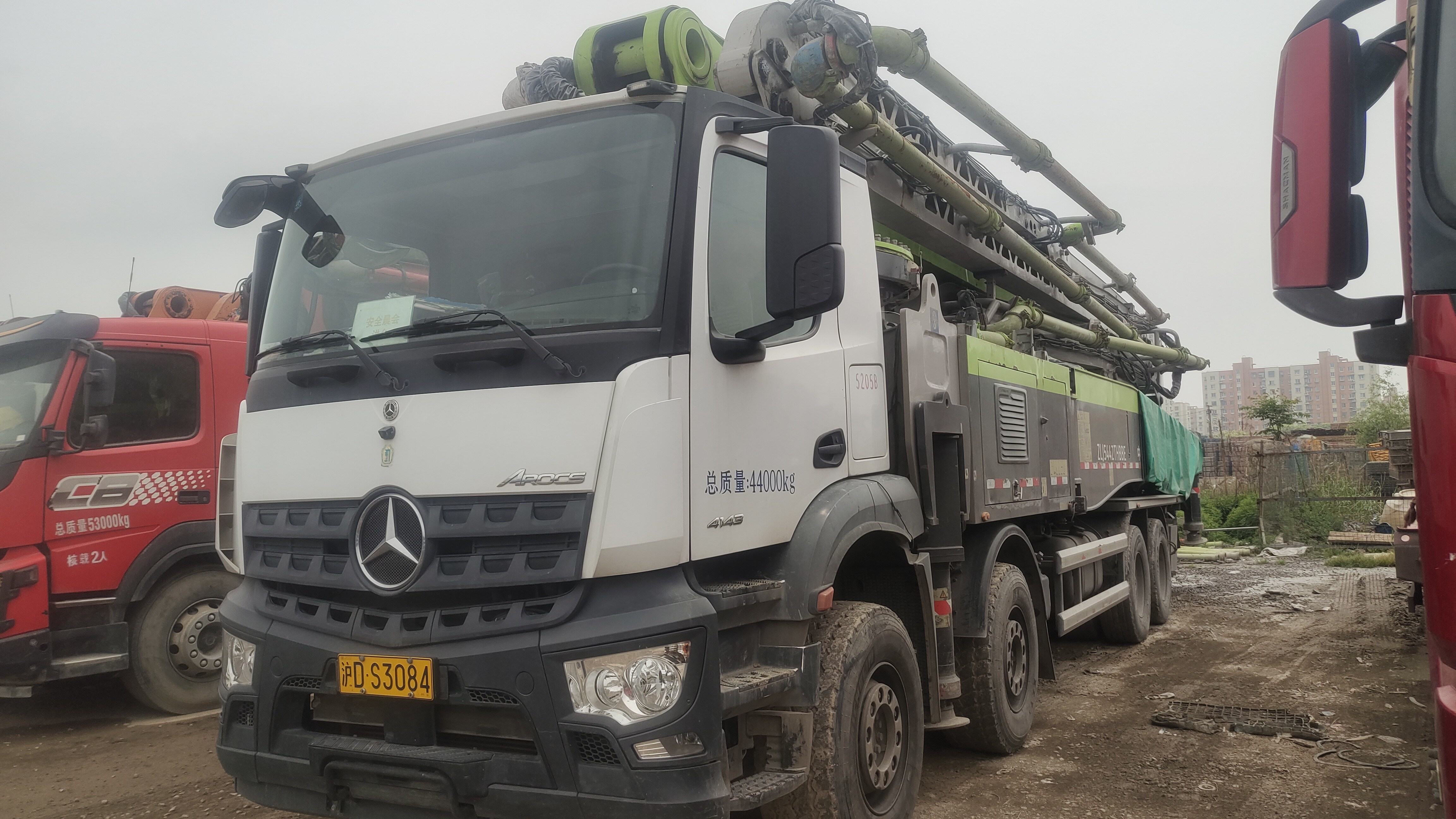

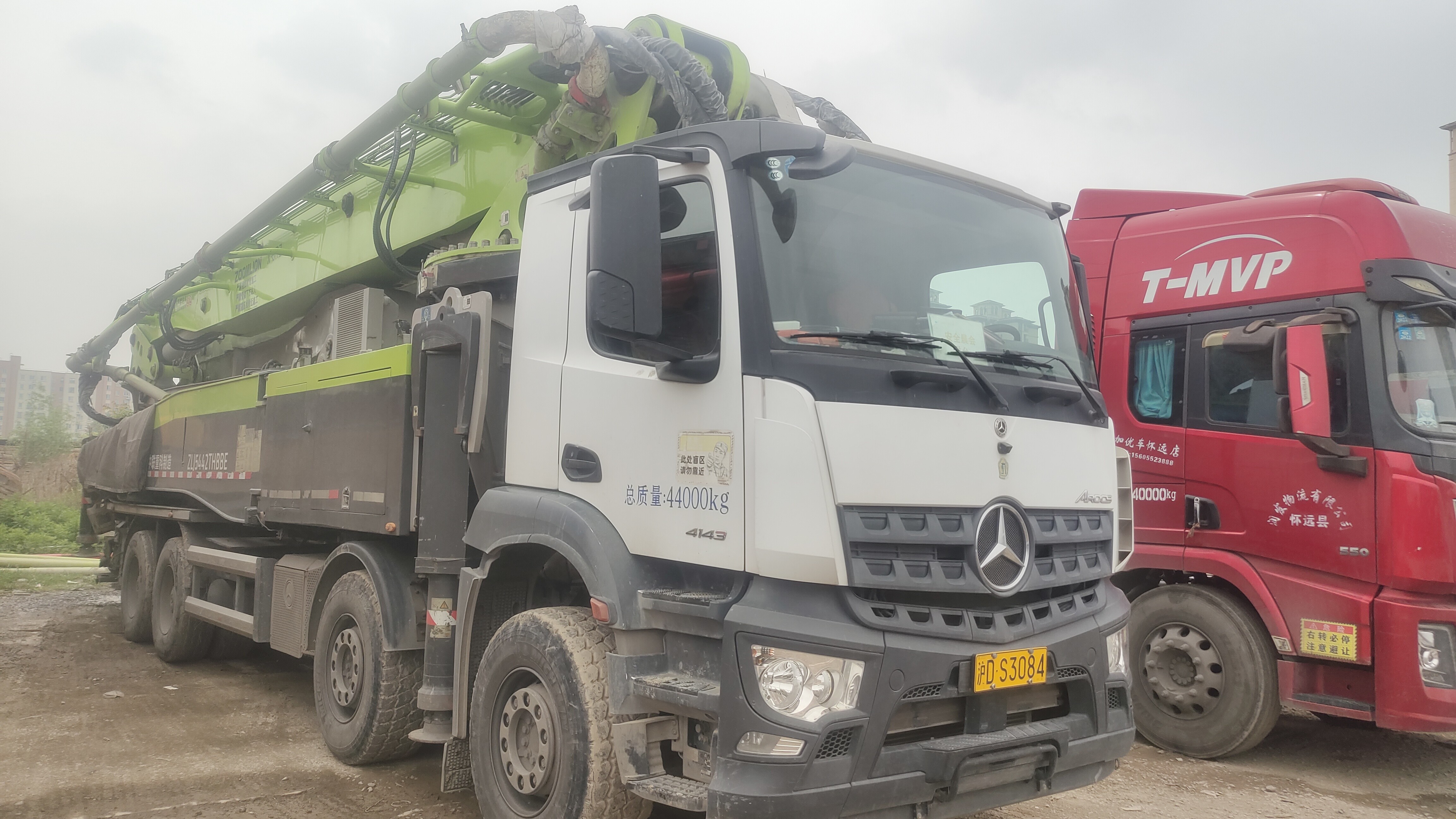

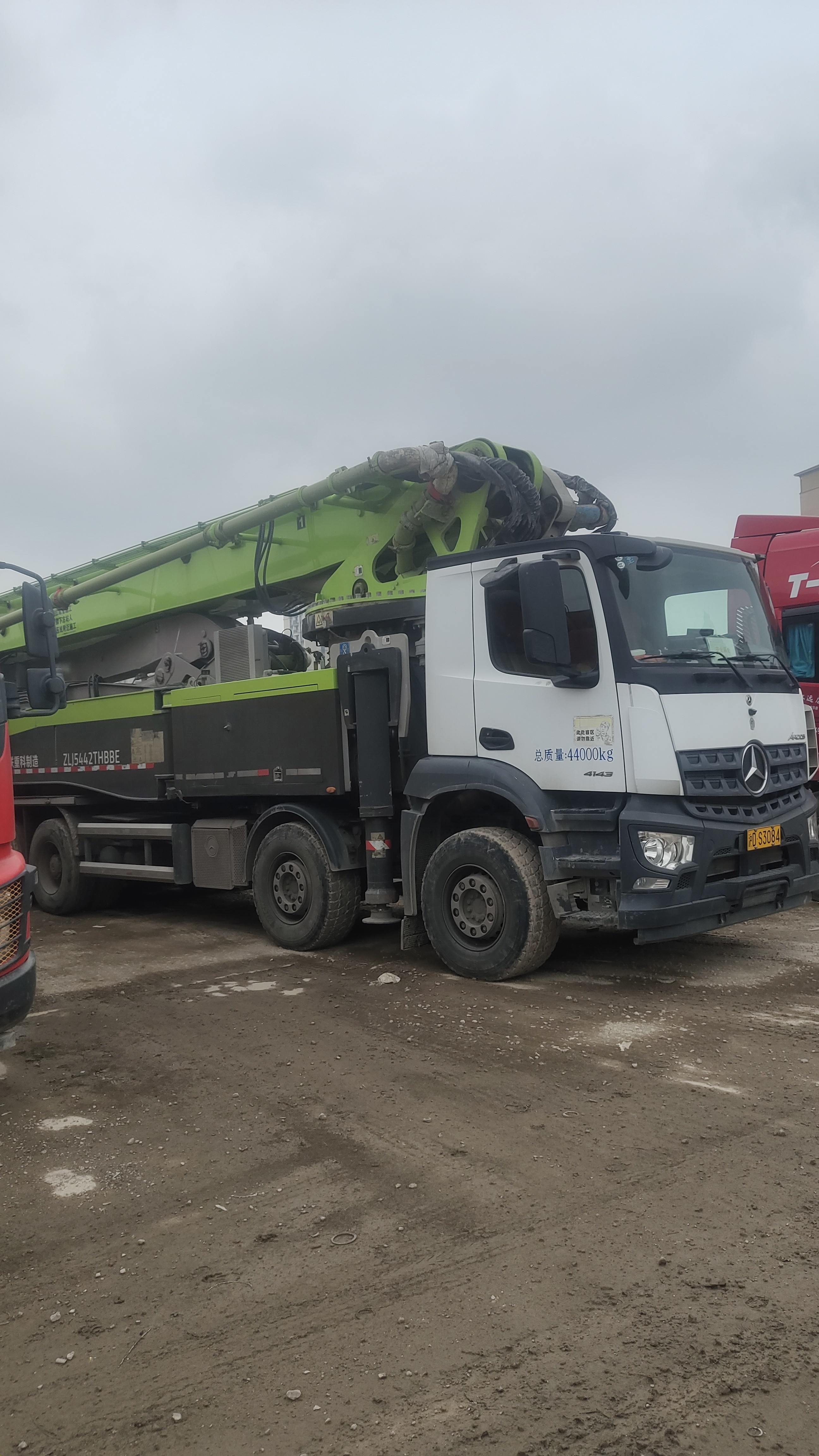

   Used Zhonglian Heavy Industry pump truck, Mercedes Benz chassis, supporting on-site inspection

Product introduction

Zhonglian Heavy Industry ZLJ5442THBBE Pump Truck - Efficient Construction, Leading the Future with Intelligence

Zhonglian Heavy Industry ZLJ5442THBBE pump truck redefines concrete conveying efficiency with excellent performance and intelligent technology. Equipped with a large displacement hydraulic pumping system, the maximum theoretical conveying capacity reaches 180m ³/h, making it easy to cope with high-intensity construction scenarios such as high-rise buildings and large-scale infrastructure; Innovative arm design, fabric height coverage of 44 meters, flexible and precise, wider construction range.

Core advantages:

Efficient and energy-saving: adopting electric drive or National VI power configuration, energy consumption is reduced by 15%, and operating costs are better;

Intelligent control: equipped with remote diagnosis and one click arm extension and retraction technology, ensuring safe and convenient construction;

Stable and durable: High strength steel arm frame+intelligent shock absorption system, stable and reliable even under complex working conditions;

Environmental compliance: Compliant with global emission standards, green construction without pressure.

Zhonglian Heavy Industry empowers precise pouring of every cubic meter of concrete with ingenuity and technology. Choosing ZLJ5442THBBE means choosing a high-end pumping solution that is worry free, labor-saving, and cost-effective!

Technical parameters of ZLJ5442THBBE pump truck from Zoomlion Heavy Industry

1. Basic parameters
Model: ZLJ5442THBBE

Chassis brand: Domestic high-end heavy-duty truck chassis (optional)

Drive form: 8 × 4

Vehicle weight: 44000 kg

Wheelbase: 1850+3350+1350 mm

Emission standard: National VI (meets global environmental requirements)

2. Pumping system
Theoretical conveying capacity: 180 m ³/h (high pressure mode)/120 m ³/h (low pressure mode)

Maximum pumping pressure: 12 MPa (high pressure)/8 MPa (low pressure)

Conveyor cylinder diameter x stroke: 260 x 2100 mm

Hopper capacity: 0.7 m ³

Hydraulic system: Open hydraulic system, intelligent power matching

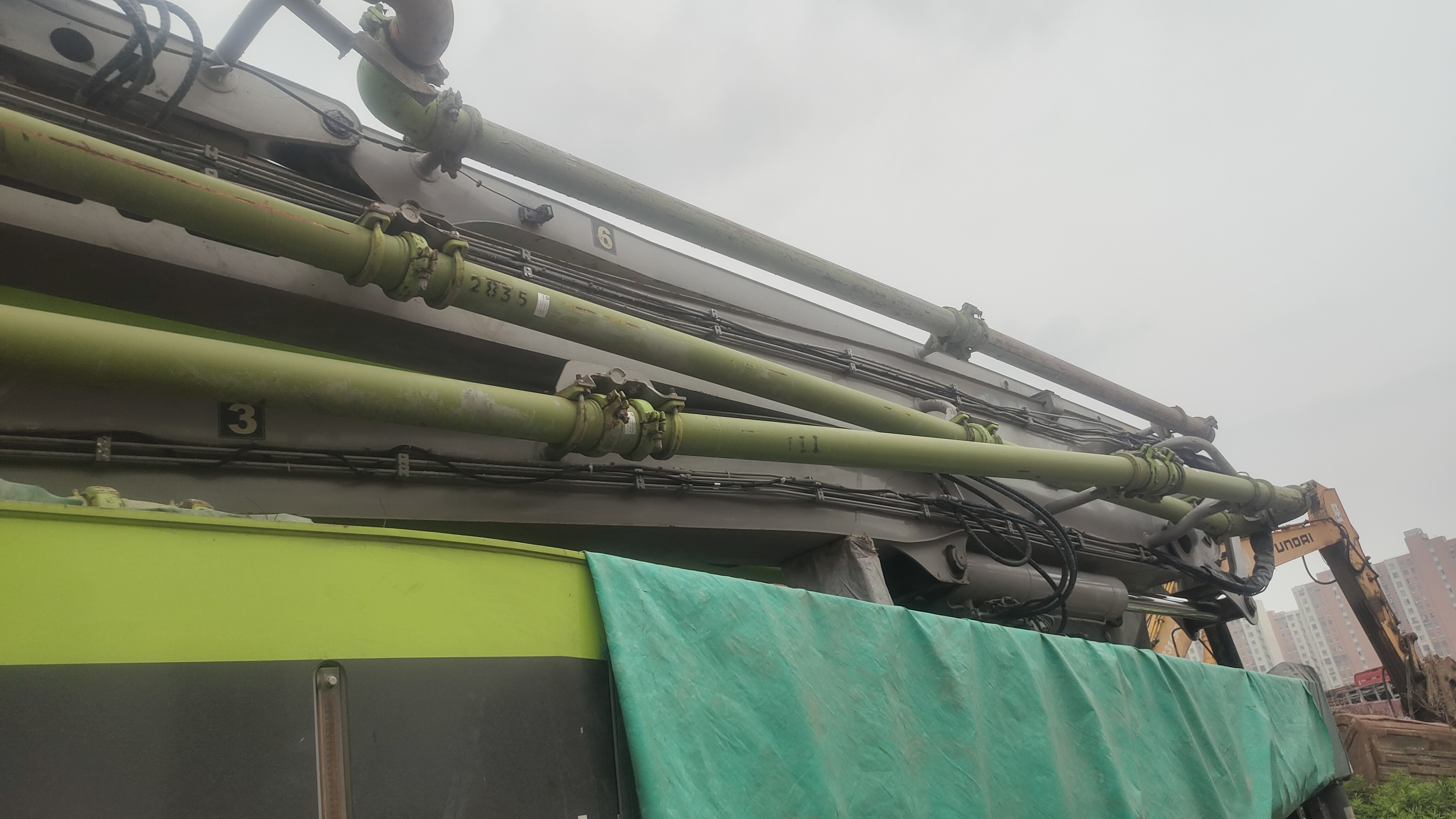

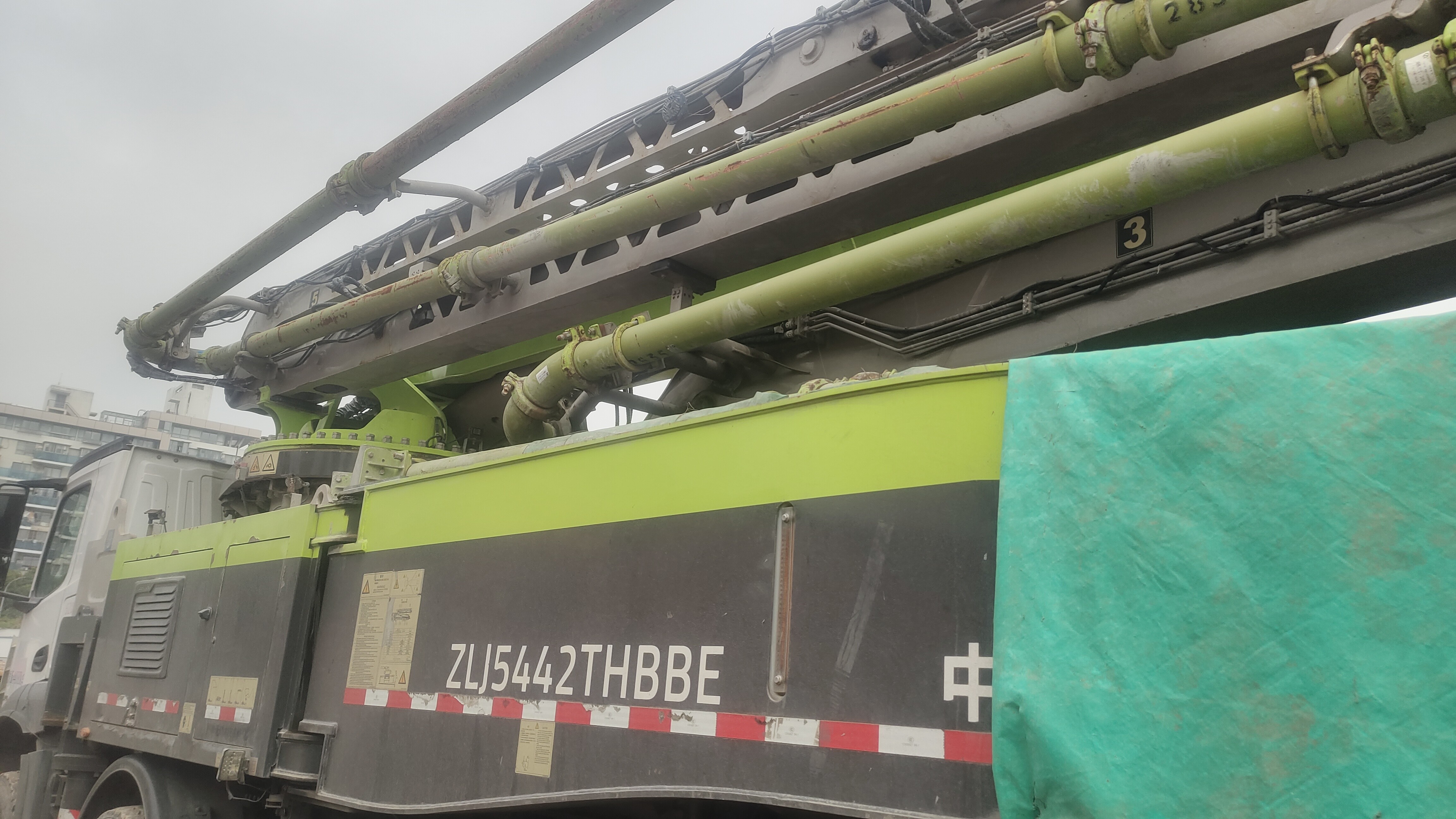

3. Arm system
Arm type: RZ type five section arm

Maximum fabric height: 44 meters

Maximum fabric radius: 40.8 meters

Arm rotation angle: ± 270 °

End hose length: 3 meters

4. Power system
Engine: National VI diesel engine (optional electric drive configuration)

Rated power: 390 kW (approximately 530 HP)

Fuel tank capacity: 400 L

5. Intelligent control system
Remote monitoring: GPS+IoT remote diagnosis

Intelligent operation: One click arm extension and retraction, intelligent anti-interference

Safety protection: Arm suspension+anti rollover protection

6. Applicable working conditions
High rise buildings (below 50 floors)

Bridge/Tunnel Construction

Large scale infrastructure projects

Zhonglian Heavy Industry ZLJ5442THBBE Pump Truck - With cutting-edge technology to assist efficient construction!
