Place of Origin:
Germany
Brand Name:
Wirtgen
Model Number:
w205

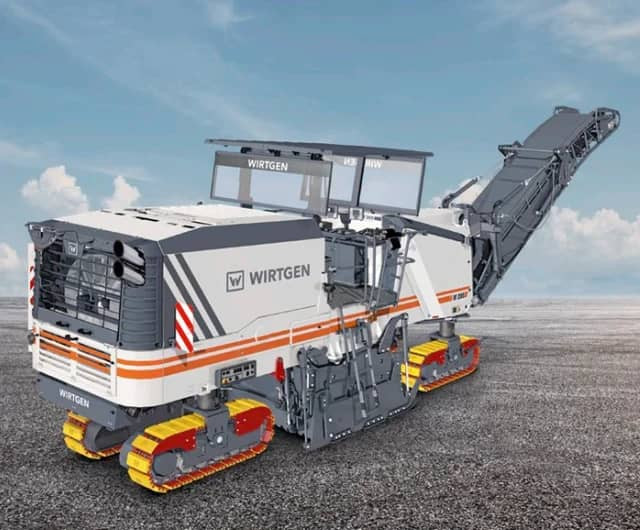

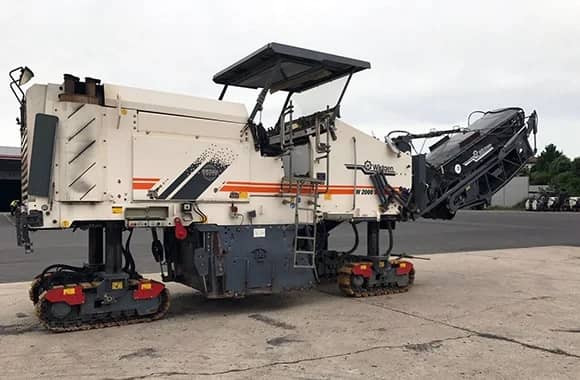

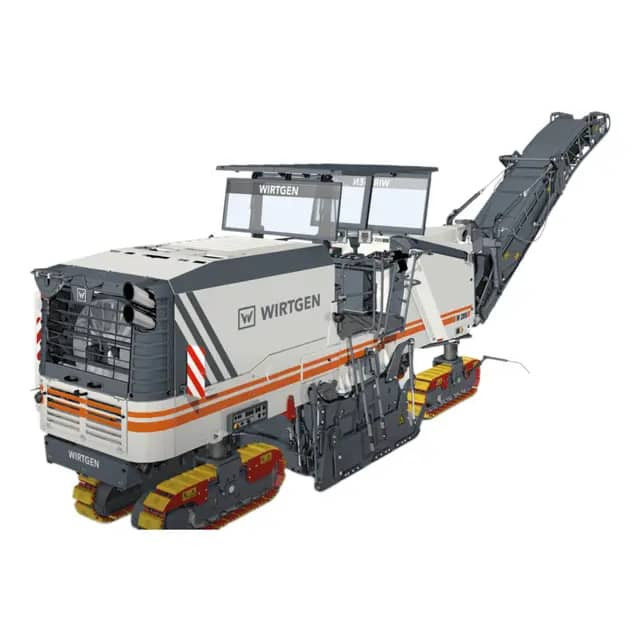

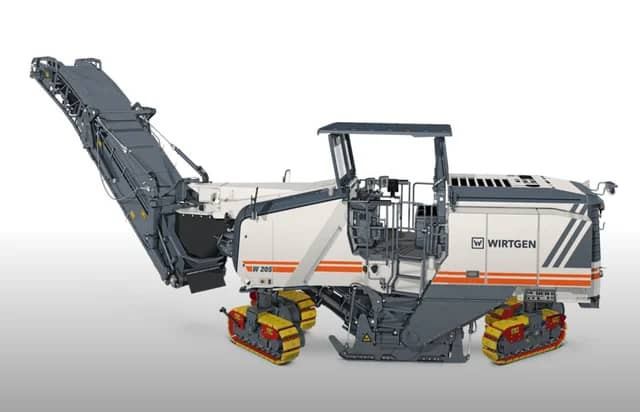

The Wirtgen W205 is a high-performance cold milling machine designed for precision milling and removal of asphalt, concrete, and other road materials. As part of Wirtgen’s W series, the W205 combines advanced technology with robust engineering to offer exceptional performance, productivity, and cost-effectiveness in a wide range of road construction and rehabilitation applications.
The Wirtgen W205 is equipped with a powerful C6.6 engine that delivers an impressive output of 276 kW (370 HP). This enables the machine to handle demanding tasks, including the milling of road surfaces at high depths and widths, while maintaining efficiency and fuel economy. The W205 features an operating weight of approximately 20 tons, making it ideal for both small-scale and large-scale milling projects.
One of the standout features of the W205 is its compact milling drum system, which allows for precise milling with a cutting width of 2.0 meters. The drum is optimized for different milling depths, with a maximum cutting depth of up to 330 mm, providing flexibility in surface preparation for new asphalt layers or resurfacing existing roads. The machine also offers high-performance cold milling capabilities for both surface-level milling and deeper layer removal, which is crucial for creating a smooth and even road surface.
The ergonomic operator platform of the W205 enhances comfort and control, allowing operators to work efficiently and safely. The cabin is designed for easy visibility and has a user-friendly interface, enabling operators to monitor performance and make adjustments as needed. Furthermore, the W205 features autonomous leveling systems that ensure even milling depths, contributing to the machine's consistent performance and reducing the need for manual adjustments.
The Wirtgen W205 is highly versatile, capable of performing a range of tasks from simple surface milling to complex removal of thick pavement layers. It is particularly valuable in road maintenance, rehabilitation projects, and new construction. The machine is designed for both urban and highway milling, providing a solution for different types of milling operations that require a balance of power, precision, and maneuverability.
Additionally, the W205 features a large conveyor belt system that enables fast material discharge and optimal handling of milled material. This system can be adjusted to suit the milling environment, improving workflow and minimizing downtime.
With its powerful engine, compact design, and advanced milling technology, the Wirtgen W205 offers an excellent solution for contractors and municipalities seeking high productivity, cost-effectiveness, and precision in road milling operations. Whether for road rehabilitation, surface removal, or new construction, the W205 is engineered to meet the demands of modern roadwork.
| Parameter | Specification |
|---|---|
| Engine Power | 276 kW (370 HP) |
| Engine Type | C6.6 Diesel Engine |
| Operating Weight | Approx. 20,000 kg (20 tons) |
| Milling Width | 2.0 meters |
| Maximum Milling Depth | Up to 330 mm |
| Conveyor Belt Width | 1.2 meters (variable) |
| Cutting Drum Speed | Up to 1,200 rpm |
| Travel Speed | Up to 3 km/h |
| Fuel Tank Capacity | 400 liters |
| Water Tank Capacity | 600 liters |
| Maximum Conveying Capacity | 1,000 tons per hour (depending on material) |
| Dimensions (L x W x H) | 6,400 mm x 2,500 mm x 3,200 mm (approx.) |
| Operator Cabin Type | Ergonomic with 360-degree visibility |
| Milling Drum Type | Standard, can be customized for different materials |
![]()
![]()
![]()
![]()
