New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery
  • New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery
  • New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery
  • New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery
  • New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery
  • New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery

New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery

Brand Name CAT
Model Number 140G
Product Details
Brand:
CAT
Rated Speed:
5.5km/h
Model:
Caterpillar
Number Of Cylnders:
6
Engine Name:
Cat C7
Product Status:
Used
After-Sales Service Provided:
Video Technical Support
Notes:
Direct-drive Powershift Transmission, And Load-sensing Hydraulics Solutions
Product Power:
Hydraulic
Applicable Industries:
Road Grading, Shaping Shoulders, Slopes, And Ditches, Or Snow Removal.
Operating Weight Of The Entire Machine:
17271kg
High Light:

Used CAT 140G construction machinery

,

New arrival Hydraulic Power Caterpillar

,

Hydraulic Power Caterpillar construction machinery

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiation
Packaging Details
1. Flat rack is better for bigger construction equipmennt and no need to dismantle. 2.Container is cheapest and fast. 3.Bulk cargo ship is better for bigger construction equipment. 4. Ro-Ro ship is faster and good for every kinds machine
Delivery Time
5 days
Payment Terms
L/C, T/T, Western Union, MoneyGram,
Supply Ability
3000 units per year
Product Description

                               New arrival Hydraulic Power Caterpillar Used CAT 140G construction machinery



Model Introduction

  1. Versatility:
    • The Cat 140G grader is suitable for a wide range of applications, including railway, mine, farmland, and highway construction. This versatility allows it to be used in diverse environments and scenarios.
  2. Powerful Performance:
    • Featuring a maximum power of 111.9kw (as stated in Reference Article 2), the Cat 140G grader provides ample power for grading, leveling, and earthmoving tasks.
  3. Efficient Transmission:
    • With hydraulic transmission, the Cat 140G grader offers smooth and efficient operation. This ensures precise control and reliable power delivery for grading jobs.
  4. Durability:
    • The Cat 140G grader is built with high-quality materials and components, ensuring durability and long-lasting performance. It can withstand heavy usage and tough conditions.
  5. Excellent Condition:
    • Used Cat 140G graders are often available in excellent condition, ready to work. This saves on maintenance costs and ensures reliable performance from the start.
  6. Available Customization:
    • Customization options are available for the Cat 140G grader, allowing it to be tailored to specific needs and requirements. This flexibility ensures it can be used effectively in various grading applications.
  7. Competitive Pricing:
    • Depending on condition, age, and other factors, Cat 140G graders are offered at competitive prices. This makes them a cost-effective option for contractors and construction companies.
    •



Technical Parameters

Base Power (1st Gear) - Net 128 kW
Engine Model Cat C7
Displacement 7.2 l
Bore 105 mm
Stroke 127 mm
High - Ambient Capability 50 °C
Derating Altitude 3048 m
Number of Cylinders 6
Maximum Torque 996 N·m
Torque Rise 46%
Note (1) Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
VHP Range - Net 128-143 kW (171-191 hp)
Note (3) Maximum torque measured at 1,000 rpm in gears 4-8.
Note (2) Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.

MOLDBOARD

Blade Width 3.7 m
Arc Radius 413 mm
Throat Clearance 120 mm
End Bit - Width 152 mm
Cutting Edge Width 152 mm
End Bit - Thickness 16 mm
Cutting Edge Thickness 16 mm
Moldboard - Height 610 mm
Moldboard - Thickness 22 mm

BLADE RANGE

Moldboard Sideshift - Left 512 mm
Circle Centershift - Left 752 mm
Moldboard Sideshift - Right 663 mm
Circle Centershift - Right 728 mm
Maximum Lift Above Ground 480 mm
Maximum Shoulder Reach Outside of Tires - Left 1896 mm
Blade Tip Range - Forward 40°
Maximum Shoulder Reach Outside of Tires - Right 1978 mm
Maximum Depth of Cut 735 mm
Blade Tip Range - Backward

FRAME

Circle - Outer Diameter 1530 mm
Front Axle - Wheel Lean - Left/Right 18°
Front Axle - Total Oscillation per Side 32°

WEIGHTS

Gross Vehicle Weight - Typically Equipped 17271 kg
Gross Vehicle Weight - Typically Equipped - Rear Axle 12335 kg
Gross Vehicle Weight - Typically Equipped - Front Axle 4936 kg
Gross Vehicle Weight - Base - Total 14750 kg
Gross Vehicle Weight - Base - Rear Axle 10491 kg
Gross Vehicle Weight - Base - Front Axle 4259 kg
Gross Vehicle Weight - Typically Equipped - Total 17271 kg

Product Features:



Maximize Performance

Power Shift Countershaft Transmission matched to engine maximizes power to the ground.

Increase Efficiency

Aggressive blade angles, optimized moldboard curvature and large throat clearance allows material to roll more freely along blade.

Simple to Operate

Optional AutoShift Transmission maximizes productivity by automatically shifting the transmission at optimal shift points.

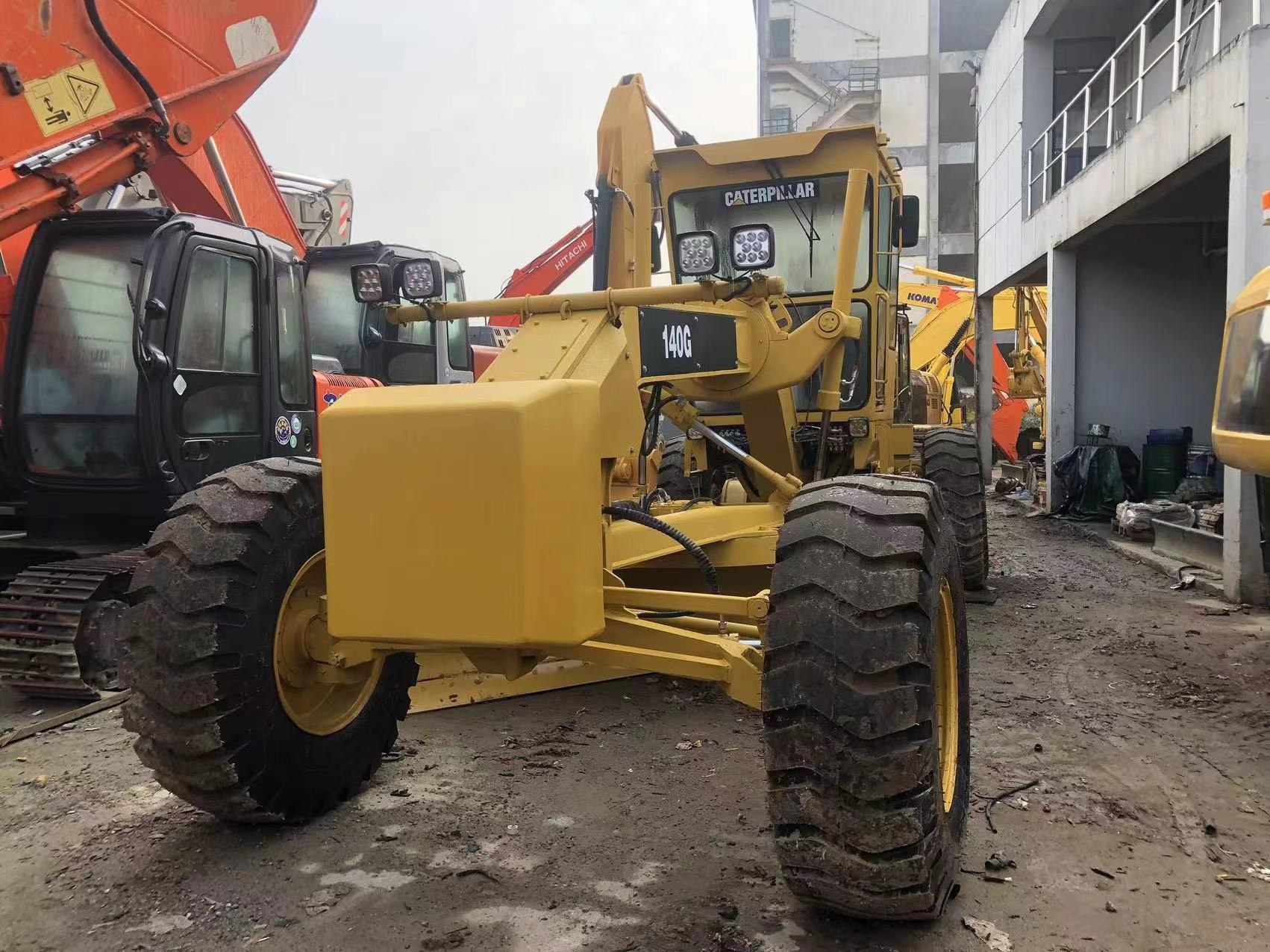

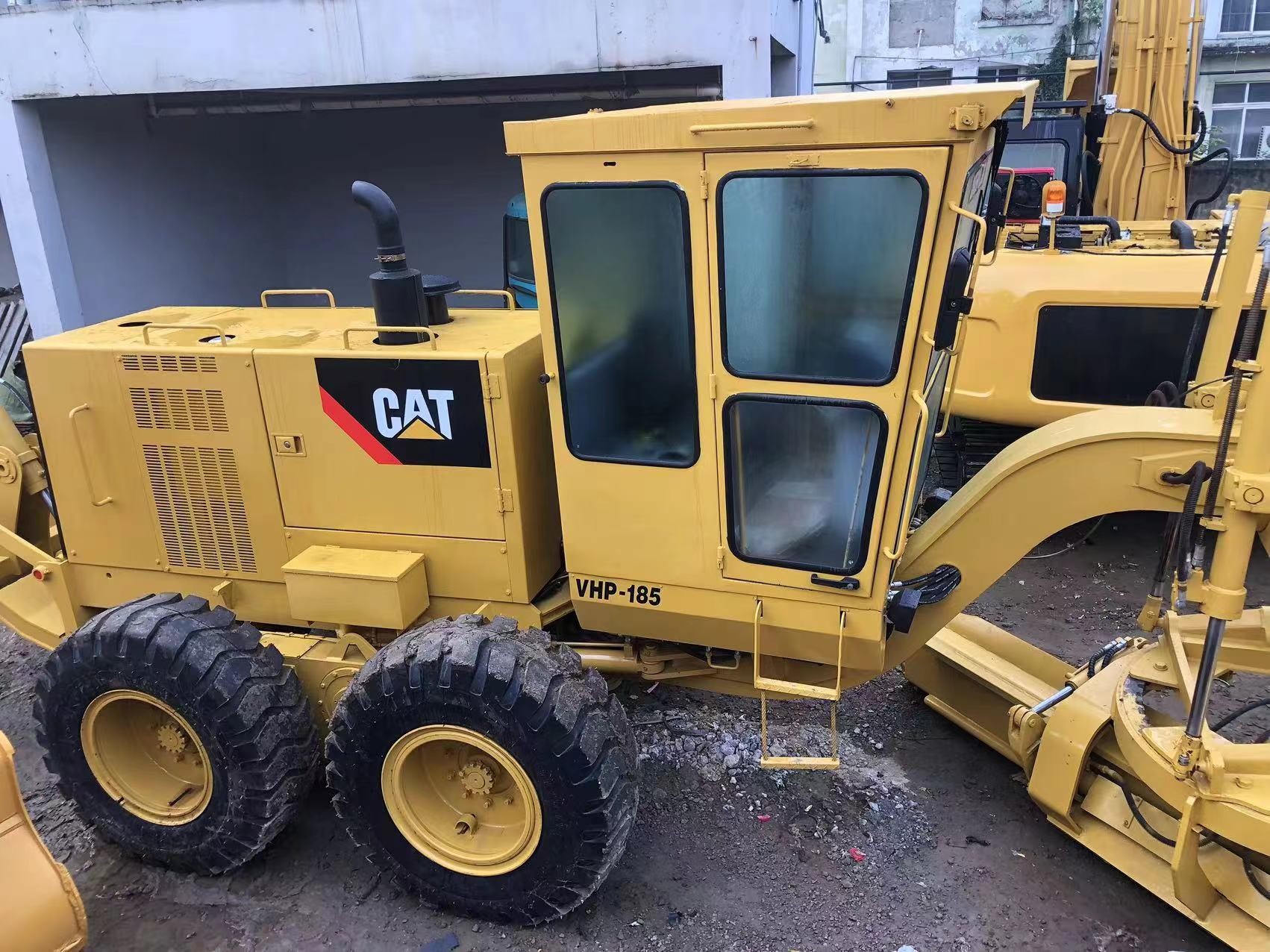

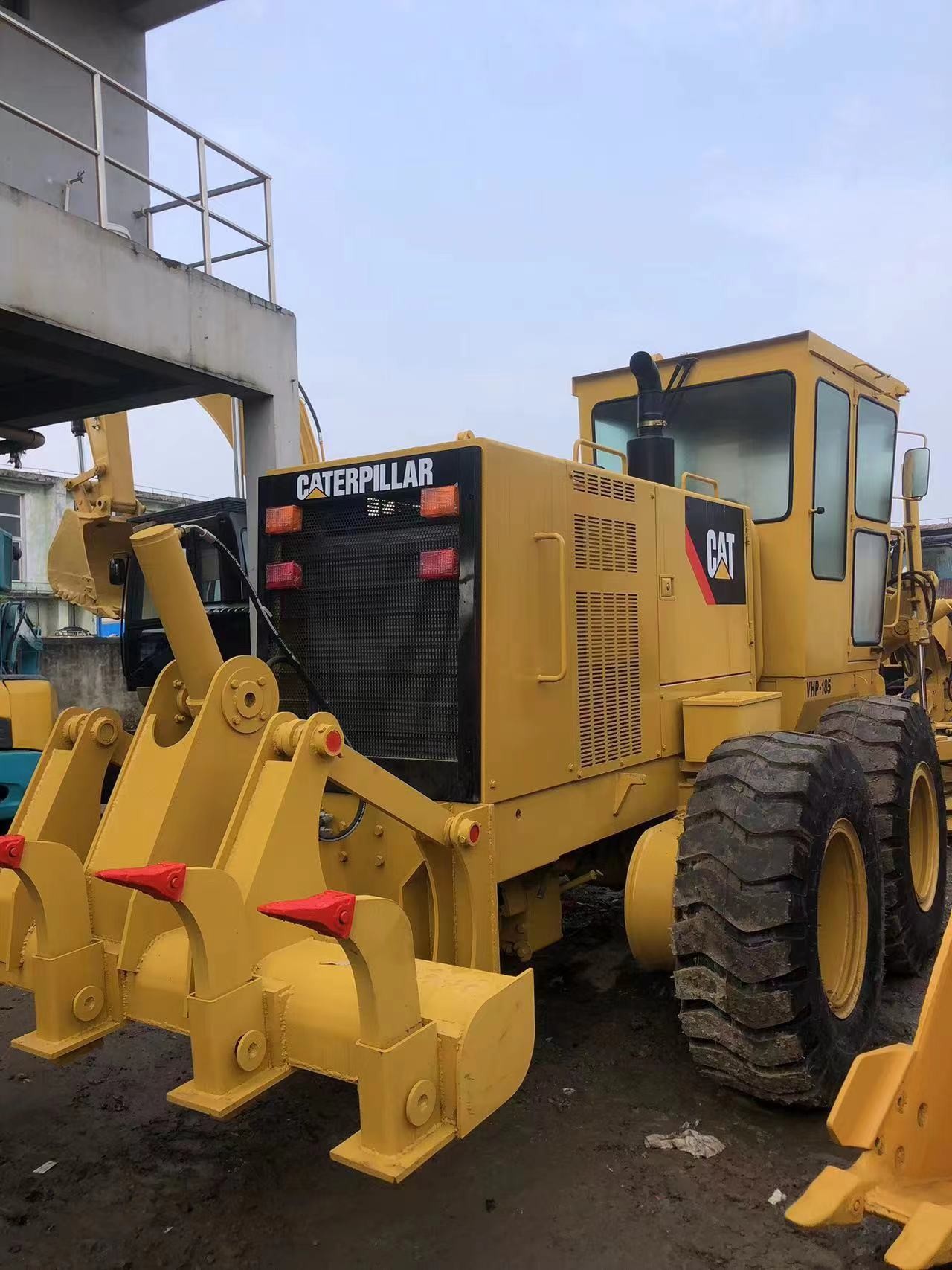

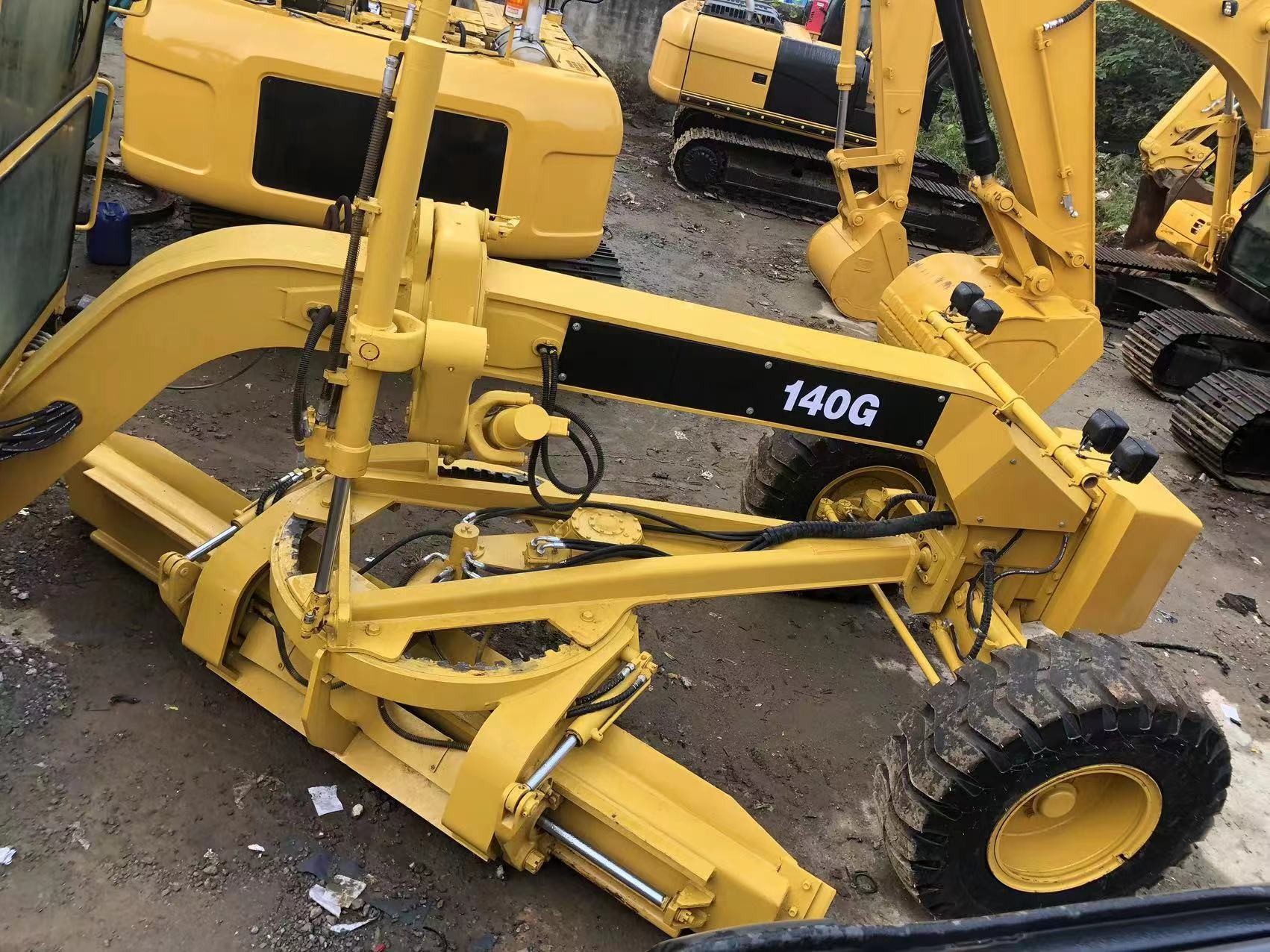

Product Photos

New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery 0New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery 1New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery 2New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery 3New Arrival Hydraulic Power Caterpillar Used CAT 140G Construction Machinery 4
