Hydraulic Power Caterpillar Used CAT 140K Grader Used Construction Machiney

Minimum Order Quantity : 1 unit Price : Negotiation
Packaging Details : 1. Flat rack is better for bigger construction equipmennt and no need to dismantle. 2.Container is cheapest and fast. 3.Bulk cargo ship is better for bigger construction equipment. 4. Ro-Ro ship is faster and good for every kinds machine Delivery Time : 5 days
Payment Terms : L/C, T/T, Western Union, MoneyGram, Supply Ability : 3000 units per year
Brand Name: CAT Model Number: 140K

Detail Information

Brand: CAT Rated Speed: 5.5km/h
Model: Caterpillar Number Of Cylnders: 6
Engine Name: Cat C7 Product Status: Used
After-Sales Service Provided: Video Technical Support Notes: Direct-drive Powershift Transmission, And Load-sensing Hydraulics Solutions
Product Power: Hydraulic Applicable Industries: Road Grading, Shaping Shoulders, Slopes, And Ditches, Or Snow Removal.
Operating Weight Of The Entire Machine: 17271kg
Highlight:

Used CAT 140K Grader

,

Hydraulic Power Grader

,

Hydraulic Power Caterpillar Used Construction Machiney

Product Description

                     Hydraulic Power Caterpillar Used CAT 140K Grader used construction machiney



Model Introduction



The CAT grader 140K, also known as the Caterpillar 140K Motor Grader, is a heavy-duty earthmoving machine designed for various construction, maintenance, and grading tasks. Its versatility and reliability make it a popular choice for asphalt and concrete pavement work.

Key Specifications:

  1. Model: CAT 140K
  2. Brand: Caterpillar
  3. Origin: Japan
  4. Year of Manufacture: (can vary depending on the unit)
  5. Color: Yellow

Engine and Power:

  • Engine Type: Cat® C7 ACERT
  • Rated Power: 128 kW
  • Rated Speed: 2000 rpm
  • Maximum Torque: 996 N·m
  • Number of Cylinders: 6
  • Displacement: 7.2 L

Transmission and Mobility:

  • Transmission Type: Hydraulic
  • Forward Speed: Up to 46.8 km/h (varies with gear)
  • Reverse Speed: Up to 37 km/h (varies with gear)
  • Moving Type: Mobile
  • Walking Mode: Crawler

Dimensions and Weight:

  • Weight: 14,138 kg
  • Dimension (L x W x H): 8504 x 3452 x 3322 mm

Blade and Working Capacity:

  • Blade Width: 3.7 m
  • Product Capacity: >400 t/h (Semi-Automatic)

Hydraulic System:

  • Hydraulic Pump Type: Variable Piston
  • Flow Rate (at Rated Speed): 210.5 L/min
  • Rated Working Pressure: 25500 Mpa

Technical Parameters

Base Power (1st Gear) - Net 128 kW
Engine Model Cat C7
Displacement 7.2 l
Bore 105 mm
Stroke 127 mm
High - Ambient Capability 50 °C
Derating Altitude 3048 m
Number of Cylinders 6
Maximum Torque 996 N·m
Torque Rise 46%
Note (1) Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
VHP Range - Net 128-143 kW (171-191 hp)
Note (3) Maximum torque measured at 1,000 rpm in gears 4-8.
Note (2) Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.

MOLDBOARD

Blade Width 3.7 m
Arc Radius 413 mm
Throat Clearance 120 mm
End Bit - Width 152 mm
Cutting Edge Width 152 mm
End Bit - Thickness 16 mm
Cutting Edge Thickness 16 mm
Moldboard - Height 610 mm
Moldboard - Thickness 22 mm

BLADE RANGE

Moldboard Sideshift - Left 512 mm
Circle Centershift - Left 752 mm
Moldboard Sideshift - Right 663 mm
Circle Centershift - Right 728 mm
Maximum Lift Above Ground 480 mm
Maximum Shoulder Reach Outside of Tires - Left 1896 mm
Blade Tip Range - Forward 40°
Maximum Shoulder Reach Outside of Tires - Right 1978 mm
Maximum Depth of Cut 735 mm
Blade Tip Range - Backward

FRAME

Circle - Outer Diameter 1530 mm
Front Axle - Wheel Lean - Left/Right 18°
Front Axle - Total Oscillation per Side 32°

WEIGHTS

Gross Vehicle Weight - Typically Equipped 17271 kg
Gross Vehicle Weight - Typically Equipped - Rear Axle 12335 kg
Gross Vehicle Weight - Typically Equipped - Front Axle 4936 kg
Gross Vehicle Weight - Base - Total 14750 kg
Gross Vehicle Weight - Base - Rear Axle 10491 kg
Gross Vehicle Weight - Base - Front Axle 4259 kg
Gross Vehicle Weight - Typically Equipped - Total 17271 kg

Product Features:



Maximize Performance

Power Shift Countershaft Transmission matched to engine maximizes power to the ground.

Increase Efficiency

Aggressive blade angles, optimized moldboard curvature and large throat clearance allows material to roll more freely along blade.

Simple to Operate

Optional AutoShift Transmission maximizes productivity by automatically shifting the transmission at optimal shift points.

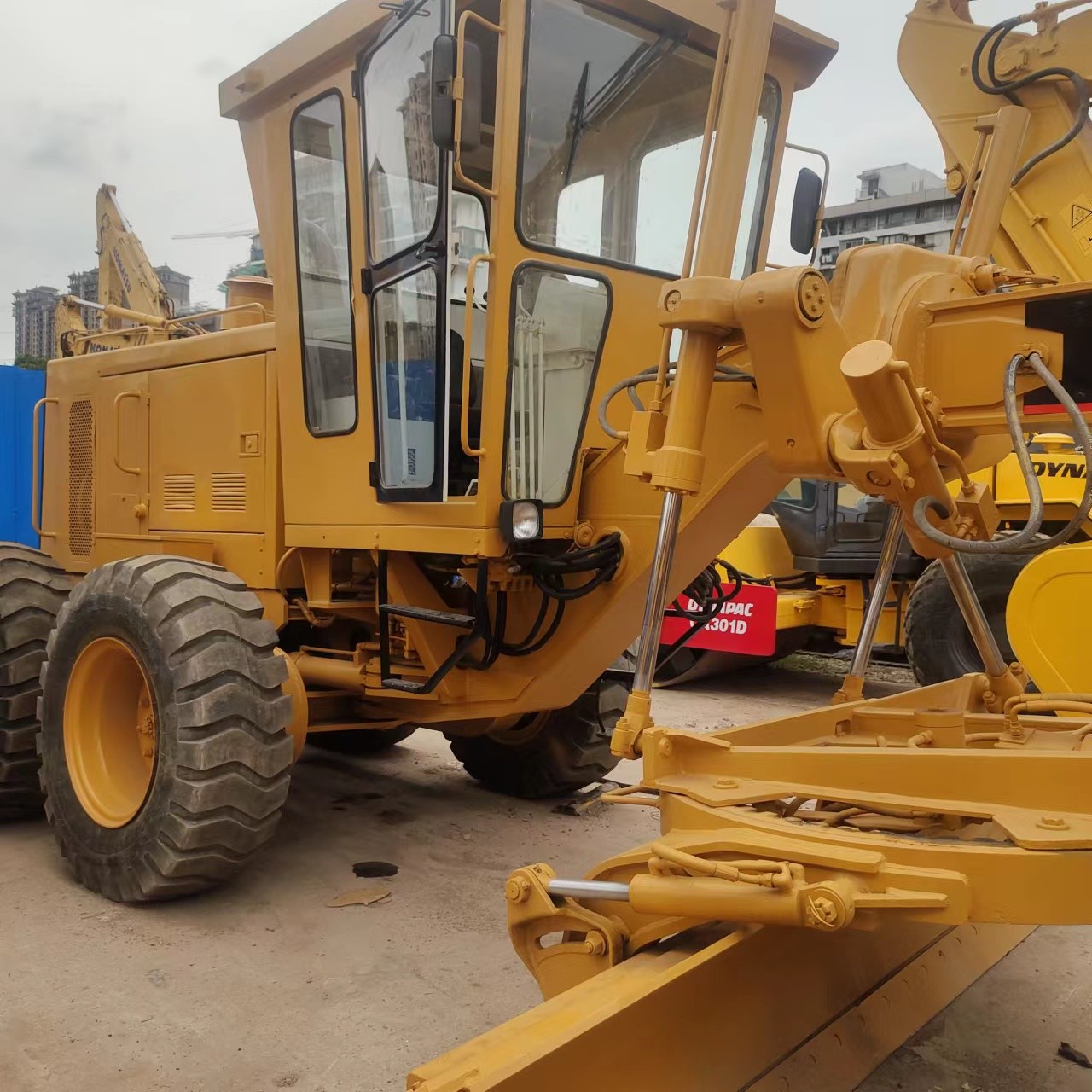

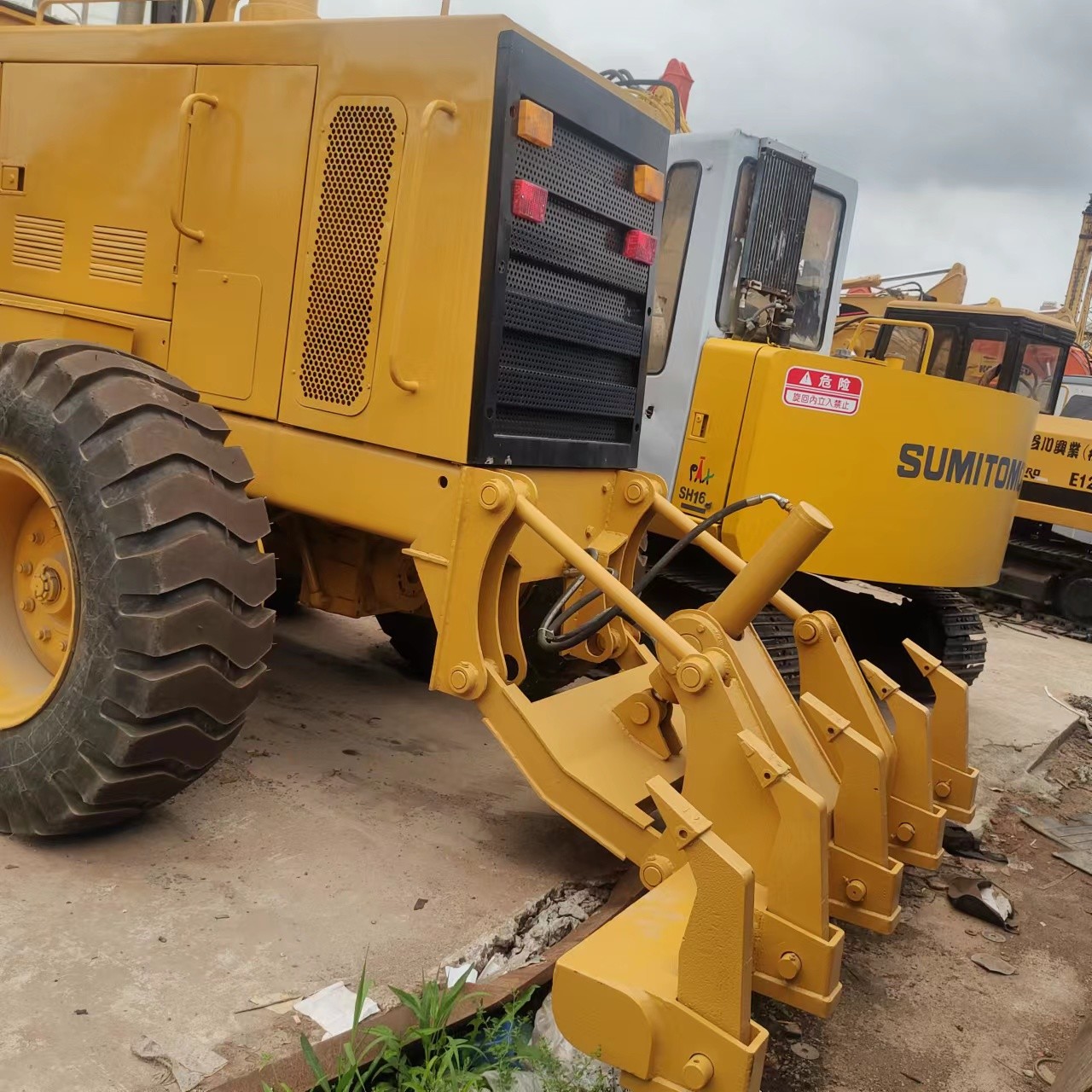

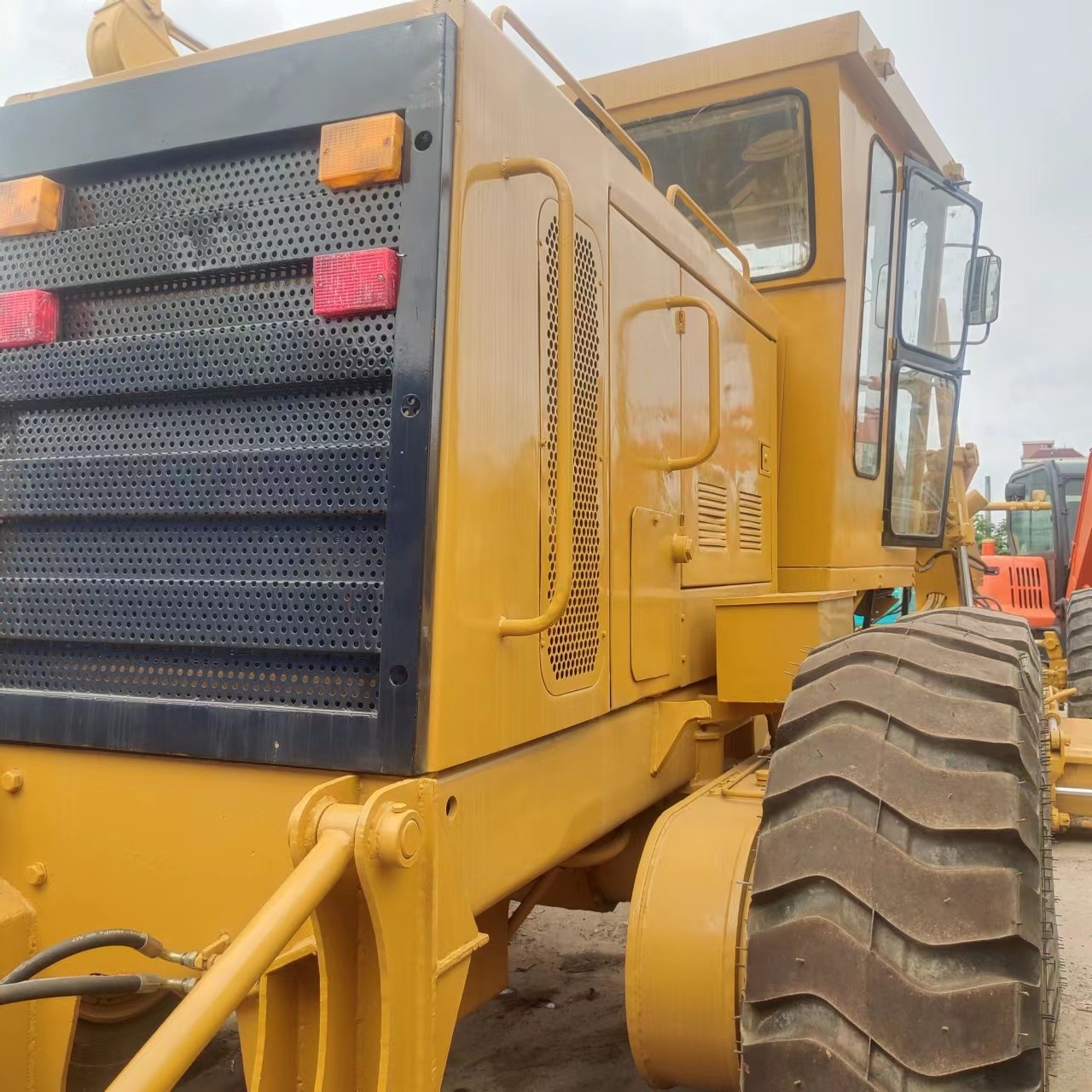

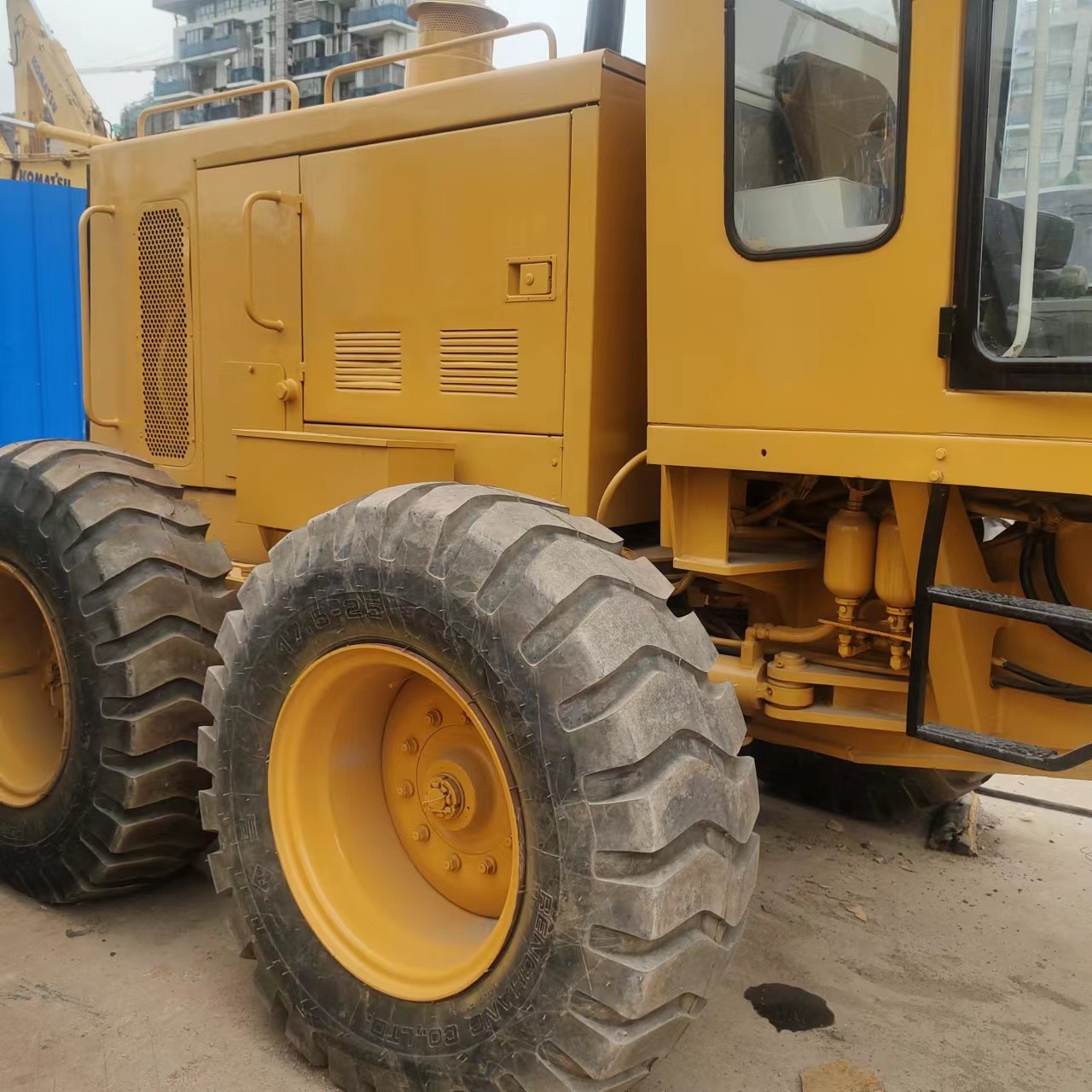

Product Photos

Hydraulic Power Caterpillar Used CAT 140K Grader Used Construction Machiney 0Hydraulic Power Caterpillar Used CAT 140K Grader Used Construction Machiney 1Hydraulic Power Caterpillar Used CAT 140K Grader Used Construction Machiney 2Hydraulic Power Caterpillar Used CAT 140K Grader Used Construction Machiney 3



Support and Services



Machine Operation Guide Technical Support and Services
Instructions for safe and efficient use
Free inspection and regular maintenance before leaving the factory
Spare parts supply after becoming our customer


Our main products


Products Brand Model
Used Excavator CAT 306,307,312D,315D,320C,320D,325,330D,336D,349D
Hitachi EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450
ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450
Komatsu PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450
Kobelco SK60,SK75,SK120,SK200,SK260,SK350
Doosan DH55,DH60,DH150,DH220,DH225,DH300
DX55,DX60,DX150,DX220,DX225,DX300
Hyundai 130,150,215,225,305
Volvo EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480
Kubota U15,U17,U30,U35,KX155,KX165
SANY 55,60,75,95,135,215,235
Used Bulldozer CAT D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R
Komatsu D31EX,D65E,D85,D155,D275,D375,D65PX
Shangong SEM816,SEM818
Shantui SD13,SD16,SD22,SD32
Used Loader CAT 938G,966F,966H,966G,950GC,980G
Komatsu WA320,WA380,WA470,WA500,WA600
XCMG 50GN
LIiugong LG856,856H,835,836,862
Shangong SEM650,652
Lingong LG936,956,958,968
Used Backhoe Loader JCB 3CX,4CX,
CASE 508M,580L,580N
Lingong 776,777
Used Motor Grader CAT 12G,4G,120G,140G,140K
Komatsu GD511A,GD655
XCMG GR180,GR215
LIiugong 61,416,141,804,215
Shangong 919,921
Lingong 9180
Used Road roller SANY STR140,STR160,SSR220A,SSR200A
XCMG CA25/30,XS143/163/183,XS203/223/263
Liugong LG614,616,618,620,622,626
Shantui SR16,SR18,SR20,SR22



Packing and Shipping

Used excavators  and such are transported using appropriate packaging materials to ensure the safety and integrity of the product during transportation. Packaging materials include corrugated boxes, shrink packaging, bubble packaging and foam. Depending on the size and weight of the product, the excavator is also secured to wooden pallets or slides using belts, shrink wrap, and/or stretch wrap.



FAQ

1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB / CIF
3.How about the delivery time?
Answer: Usually, it takes 5 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
