Caterpillar 140K Grader 14 Ton Used Road Grader
Contact Person : Zheng
Phone Number : 13361952589
whatsapp : +8613361952589
| Minimum Order Quantity : | 1 unit | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1. Flat rack is better for bigger construction equipmennt and no need to dismantle. 2.Container is cheapest and fast. 3.Bulk cargo ship is better for bigger construction equipment. 4. Ro-Ro ship is faster and good for every kinds machine | Delivery Time : | 5 days |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram, | Supply Ability : | 3000 units per year |
| Brand Name: | CAT | Model Number: | 140G |
|---|
|
Detail Information |
|||
| Brand: | CAT | Rated Speed: | 5.5km/h |
|---|---|---|---|
| Model: | Caterpillar | Number Of Cylnders: | 6 |
| Engine Name: | Cat C7 | Product Status: | Used |
| After-Sales Service Provided: | Video Technical Support | Notes: | Direct-drive Powershift Transmission, And Load-sensing Hydraulics Solutions |
| Product Power: | Hydraulic | Applicable Industries: | Road Grading, Shaping Shoulders, Slopes, And Ditches, Or Snow Removal. |
| Operating Weight Of The Entire Machine: | 17271kg | ||
| Highlight: | Second Hand Caterpillar Grader,Used CAT 140G Grader,Hydraulic Used Road Grader |
||
Product Description
New Cat ® The 140 GC grader not only boasts excellent performance, but also offers economic ownership and operating costs. The centralized arrangement of filters simplifies machine maintenance work. Comfort options such as heating/cooling systems and air suspension seats ensure efficient work throughout the day. Caterpillar Cat ® The 140 GC grader is a 165-180 horsepower grader manufactured by Caterpillar, Cat ® The total weight (kg) of 140 GC is 16620.
The advantages of the Caterpillar 140 GC grader include:
1. Powerful performance: The Caterpillar 140 GC grader is equipped with a reliable engine that provides excellent power and torque, making it easy to complete leveling tasks such as digging, pushing, and leveling.
2. High stability: The grader adopts a sturdy chassis design, making it highly stable and suitable for operations in various terrain conditions.
3. Easy to operate: The Caterpillar 140 GC grader is equipped with an intuitive and easy to understand operating interface, which simplifies the work difficulty of operators and improves work efficiency.
4. High quality hydraulic system: This grader adopts advanced hydraulic system, providing efficient and stable power transmission, and can provide strong thrust and accurate control under various working conditions. 5. Comfortable operating environment: The Caterpillar 140 GC grader is equipped with a spacious and user-friendly cab, providing a good view and comfortable working environment, reducing operator fatigue.
6. Reliable and Durable: Caterpillar, as a well-known brand, is renowned for its excellent quality and reliability. The Caterpillar 140 GC grader has undergone strict quality and durability testing, and can maintain excellent performance in harsh working environments. In summary, the Caterpillar 140 GC grader has strong working performance, high stability, easy operation, high-quality hydraulic system, comfortable operating environment, and reliable durability, making it an ideal leveling machinery.
| Base Power (1st Gear) - Net | 128 kW |
| Engine Model | Cat C7 |
| Displacement | 7.2 l |
| Bore | 105 mm |
| Stroke | 127 mm |
| High - Ambient Capability | 50 °C |
| Derating Altitude | 3048 m |
| Number of Cylinders | 6 |
| Maximum Torque | 996 N·m |
| Torque Rise | 46% |
| Note (1) | Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. |
| VHP Range - Net | 128-143 kW (171-191 hp) |
| Note (3) | Maximum torque measured at 1,000 rpm in gears 4-8. |
| Note (2) | Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. |
| Blade Width | 3.7 m |
| Arc Radius | 413 mm |
| Throat Clearance | 120 mm |
| End Bit - Width | 152 mm |
| Cutting Edge Width | 152 mm |
| End Bit - Thickness | 16 mm |
| Cutting Edge Thickness | 16 mm |
| Moldboard - Height | 610 mm |
| Moldboard - Thickness | 22 mm |
| Moldboard Sideshift - Left | 512 mm |
| Circle Centershift - Left | 752 mm |
| Moldboard Sideshift - Right | 663 mm |
| Circle Centershift - Right | 728 mm |
| Maximum Lift Above Ground | 480 mm |
| Maximum Shoulder Reach Outside of Tires - Left | 1896 mm |
| Blade Tip Range - Forward | 40° |
| Maximum Shoulder Reach Outside of Tires - Right | 1978 mm |
| Maximum Depth of Cut | 735 mm |
| Blade Tip Range - Backward | 5° |
| Circle - Outer Diameter | 1530 mm |
| Front Axle - Wheel Lean - Left/Right | 18° |
| Front Axle - Total Oscillation per Side | 32° |
| Gross Vehicle Weight - Typically Equipped | 17271 kg |
| Gross Vehicle Weight - Typically Equipped - Rear Axle | 12335 kg |
| Gross Vehicle Weight - Typically Equipped - Front Axle | 4936 kg |
| Gross Vehicle Weight - Base - Total | 14750 kg |
| Gross Vehicle Weight - Base - Rear Axle | 10491 kg |
| Gross Vehicle Weight - Base - Front Axle | 4259 kg |
| Gross Vehicle Weight - Typically Equipped - Total | 17271 kg |
Product Features:
Power Shift Countershaft Transmission matched to engine maximizes power to the ground.
Aggressive blade angles, optimized moldboard curvature and large throat clearance allows material to roll more freely along blade.
Optional AutoShift Transmission maximizes productivity by automatically shifting the transmission at optimal shift points.

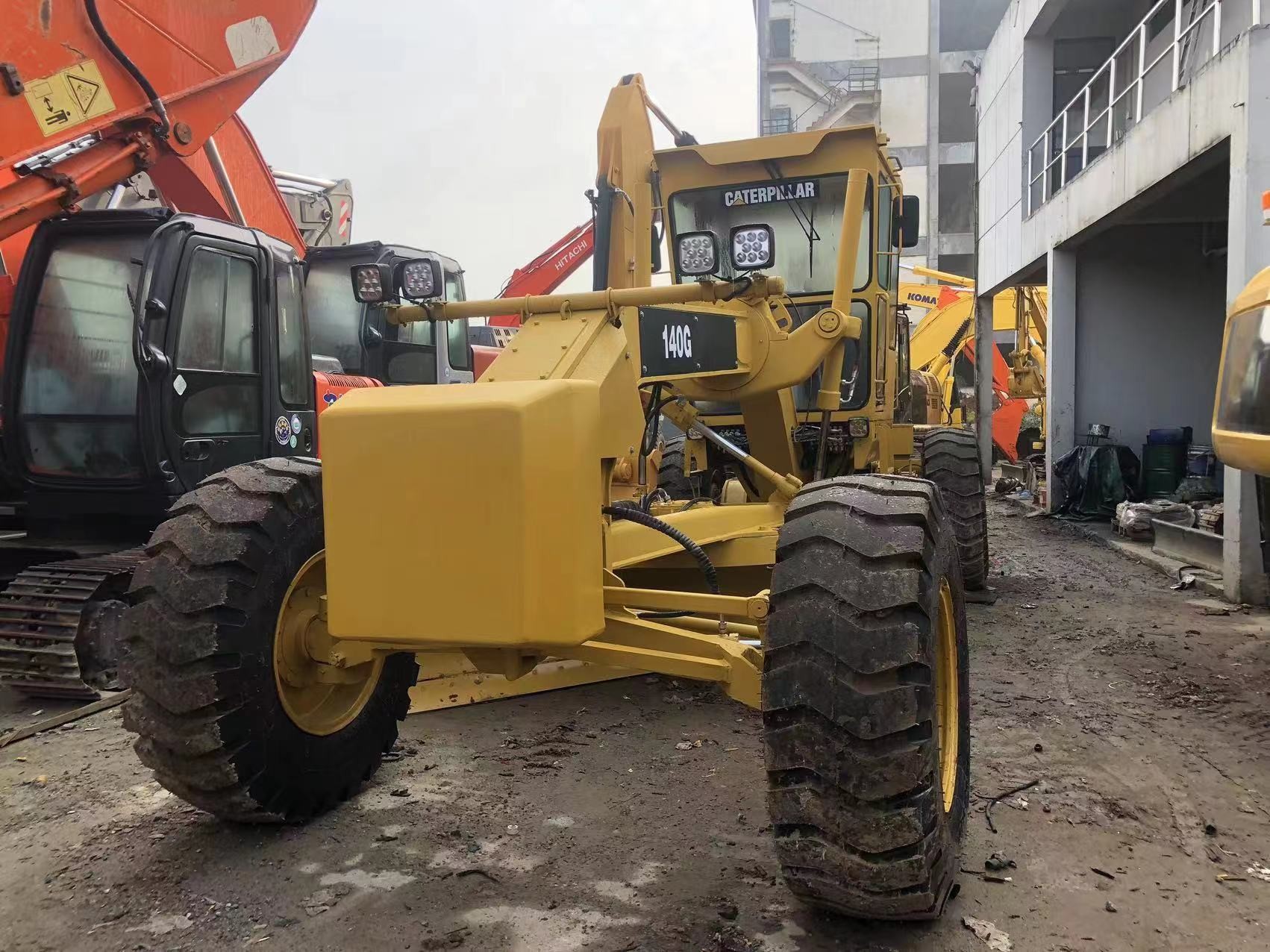

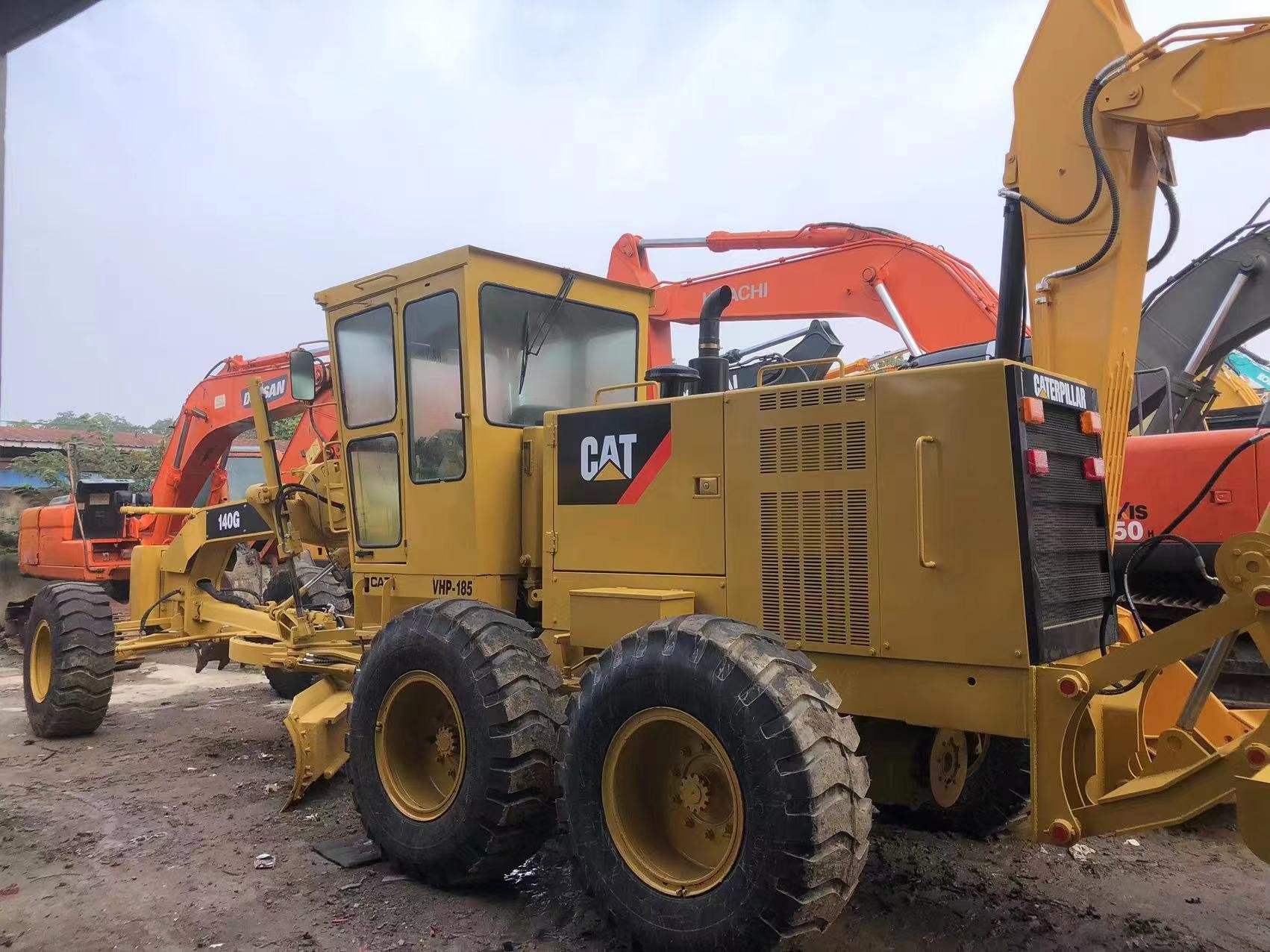

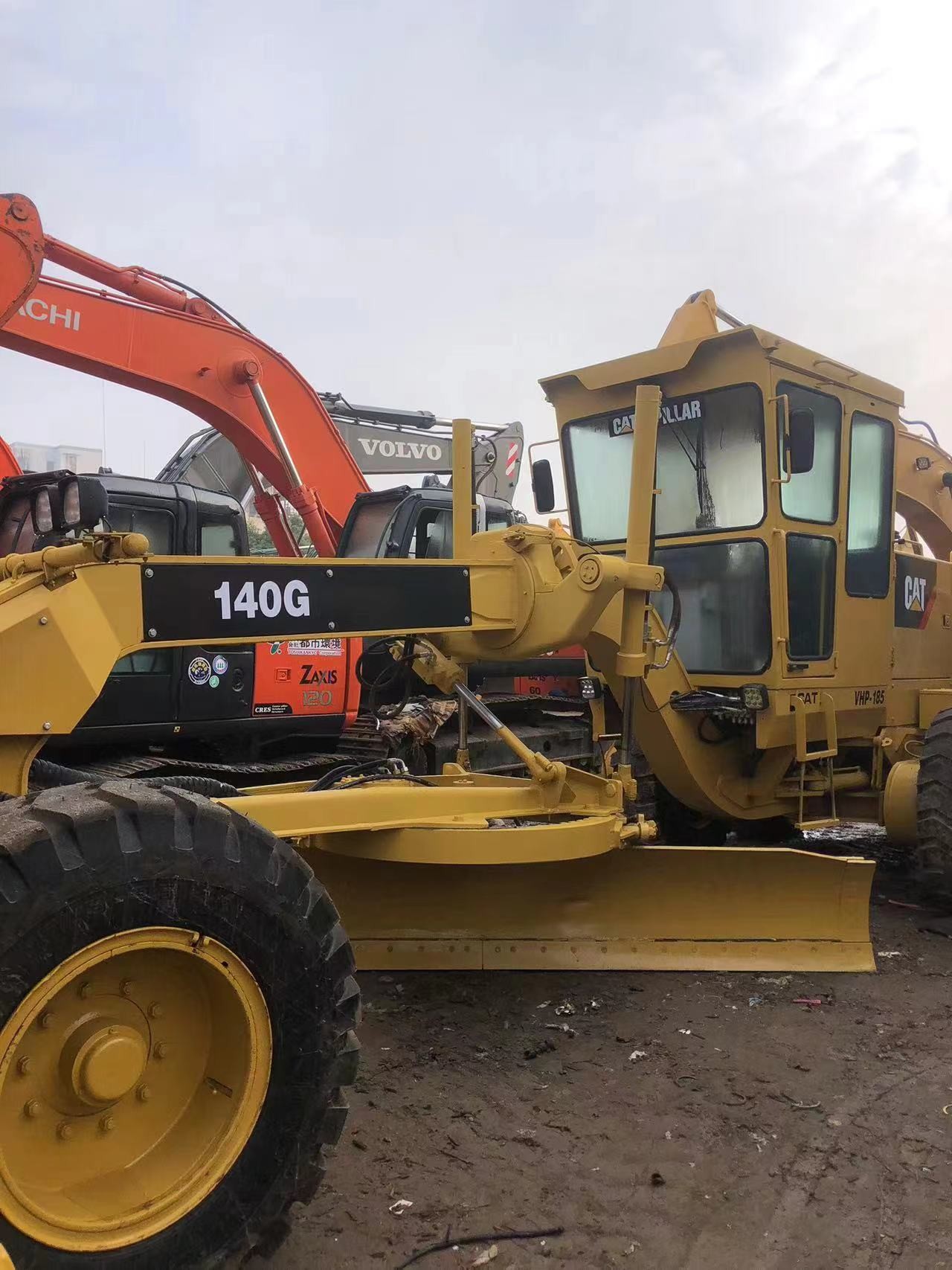

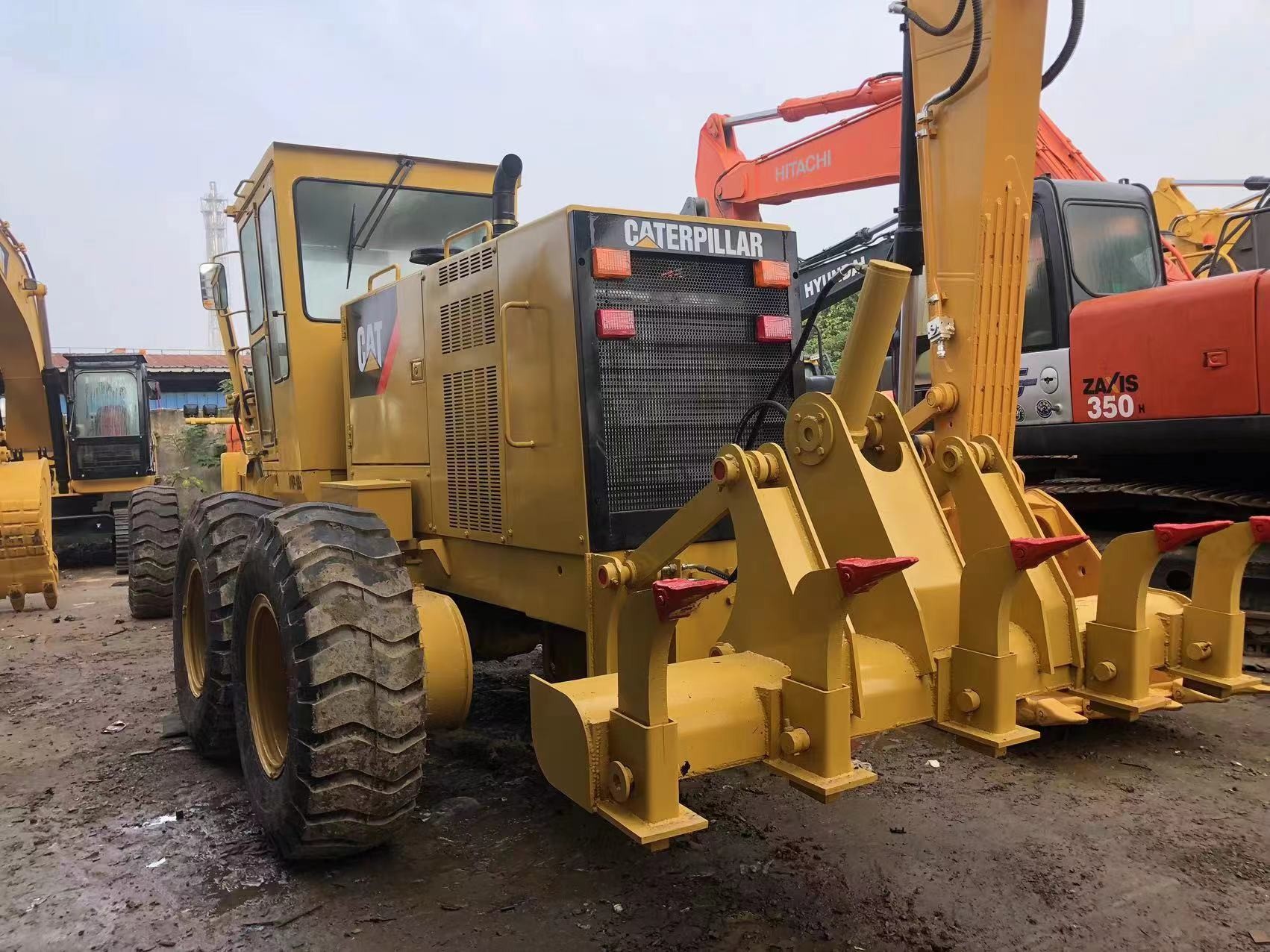

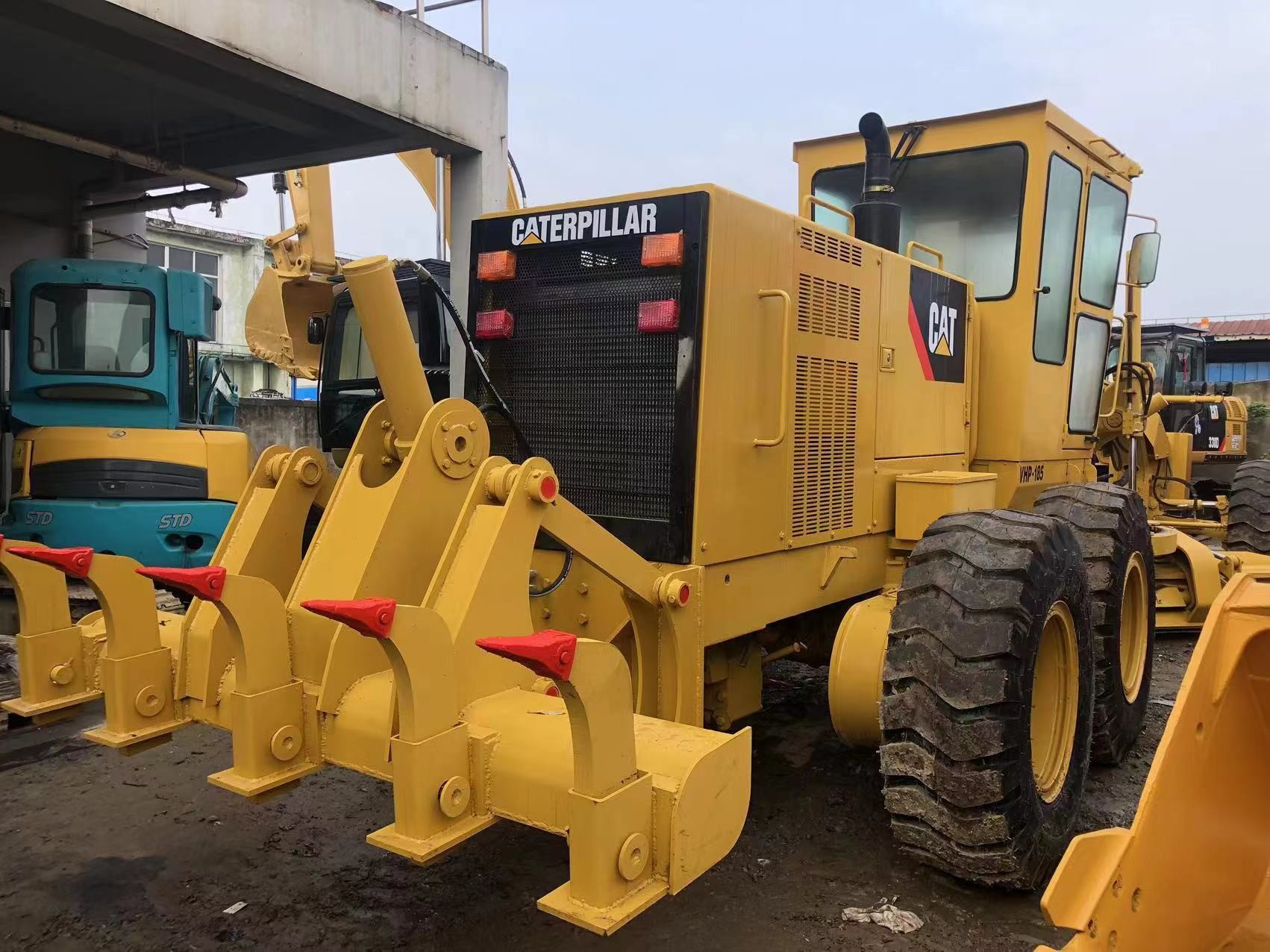

Product Photos
Our main products
| Products | Brand | Model |
| Used Excavator | CAT | 306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi | EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 | |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 | ||
| Komatsu | PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 | |
| Kobelco | SK60,SK75,SK120,SK200,SK260,SK350 | |
| Doosan | DH55,DH60,DH150,DH220,DH225,DH300 | |
| DX55,DX60,DX150,DX220,DX225,DX300 | ||
| Hyundai | 130,150,215,225,305 | |
| Volvo | EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 | |
| Kubota | U15,U17,U30,U35,KX155,KX165 | |
| SANY | 55,60,75,95,135,215,235 | |
| Used Bulldozer | CAT | D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu | D31EX,D65E,D85,D155,D275,D375,D65PX | |
| Shangong | SEM816,SEM818 | |
| Shantui | SD13,SD16,SD22,SD32 | |
| Used Loader | CAT | 938G,966F,966H,966G,950GC,980G |
| Komatsu | WA320,WA380,WA470,WA500,WA600 | |
| XCMG | 50GN | |
| LIiugong | LG856,856H,835,836,862 | |
| Shangong | SEM650,652 | |
| Lingong | LG936,956,958,968 | |
| Used Backhoe Loader | JCB | 3CX,4CX, |
| CASE | 508M,580L,580N | |
| Lingong | 776,777 | |
| Used Motor Grader | CAT | 12G,4G,120G,140G,140K |
| Komatsu | GD511A,GD655 | |
| XCMG | GR180,GR215 | |
| LIiugong | 61,416,141,804,215 | |
| Shangong | 919,921 | |
| Lingong | 9180 | |
| Used Road roller | SANY | STR140,STR160,SSR220A,SSR200A |
| XCMG | CA25/30,XS143/163/183,XS203/223/263 | |
| Liugong | LG614,616,618,620,622,626 | |
| Shantui | SR16,SR18,SR20,SR22 |
Used excavators and such are transported using appropriate packaging materials to ensure the safety and integrity of the product during transportation. Packaging materials include corrugated boxes, shrink packaging, bubble packaging and foam. Depending on the size and weight of the product, the excavator is also secured to wooden pallets or slides using belts, shrink wrap, and/or stretch wrap.
1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB / CIF
3.How about the delivery time?
Answer: Usually, it takes 5 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
